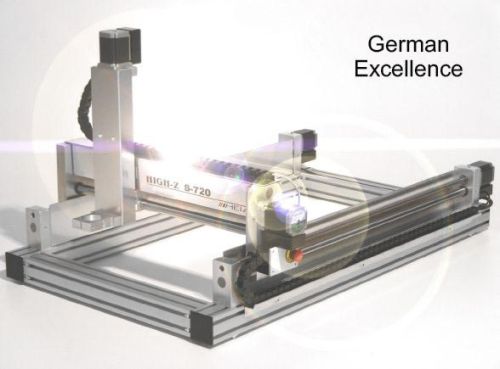

CNC Milling and Routing Machine (High Z-S Series)

Together with the development department and engineers from the machine construction and electronic sector, HEIZ CNC-Technik or the Milling and Routing Machine (High Z-S Series)developed a range of machines, which are setting new standards with regard to dimension, cost/performance ratio and stiffness as well as stability because of their geometry. Due to the new open frame construction this CNC Milling and Routing Machine (High Z-S Series) excel by virtue of the wide application range the instruments can perform. No specific CNC programming-knowledge is necessary for the operation!
The user simply creates drawings, model sketches or texts in any drafting software, e.g. Corel Draw, CAD programs etc. This CNC Milling and Routing Machine (High Z-S Series) model can be easily sent to the milling machine as HPGL-file via the supplied CNC Software Win-PCNC. Milling specific settings can be set in our milling software e.g. speed of operation, scaling, series of milling, immersion depth of the individual tools etc. Once the user becomes acquainted with the software, operation is quick and easy!
Details

• Easy to clamp or fix complex work-pieces on the work surface, or clamp work-pieces in a bench vise it is easily done in the bed area.
• This CNC Milling and Routing Machine (High Z-S Series) sits on an open frame-construction and is driven by 2 X-axis motors which allow larger work pieces to pass through the cutting area.
• Using a Z-axis extension, it is possible to work below the bed level of the machine. You can place the CNC machine on top of very large sections of material to be milled.
• Easy to do engraving- or drilling jobs
• Can work on a flat surface, with a sheet of MDF fixed to it
• Skim it once and you will be able to work with a depth precision of +/-0.02 mm.
• Manufactured with energy-chains on all axis, which allows a better cabling management
• With safety in mind, all CNC-milling machines are equipped with an emergency stop button on the bridge
• An additional emergency stop in found on the front of the stepper motor controller
