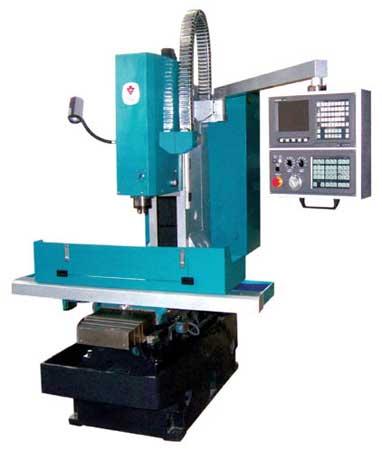

CNC Milling Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are renowned as one of the most eminent CNC Milling Machine Manufacturers in India. The array of the CNC Milling Machines includes CNC Vertical Machining center and CNC Horizontal Machining center to meet the requirement of various industrial applications. Moreover, the materials used in the manufacturing of the CNC Milling Machines are of optimum quality that ensures high durability, strength and resistivity to various non-supportive conditions. The CNC Milling Machines are also designed using the latest technologies that further ensure easy usability and low maintenance cost.

View More Details

Send Enquiry

Product Details

Technical Specification

ITEM	XK7125
X-Axis travel	535mm
Y-Axis travel	320mm
Z-Axis travel	375mm
Distance from Spindle nose to worktable surface	25-425mm
Distance from centre of spindle to surface of column ram	345mm
T slot (width x num.)	16mmX3
Worktable size	1000X250mm
Max.loading of worktable	120Kg
Power of spindle motor	1.5/2.2KW
Spindle speed	4000/£¨or 8000/12000£
Spindle taper	BT30
Spindle bearing	P4
Rapid traverse speed of 3 axes	X /Y:15m/min(servo)
¡¡	Z:15m/min(servo)
Cutting feeding rate	0-2000mm/min
Min.set unit & moving unit	0.001mm
Pitch of X/Y axes	6mm
Pitch of Z axis	6mm
Positioning accuracy (300mm)	0.008
Repeatability accuracy (300mm)	0.005
Changing way of tools	Manual
Tool spec. max. dia. (neighboring Tool) x weight x length	60mm X 3.5Kg X 175
Machine weight	1700kg
Air pressure	0.6MPa
Power of cooling pump for cutting	370W
Overall sizse	1516X1764X1708mm
Control system	GSK system¨or Simens 802S,802C
