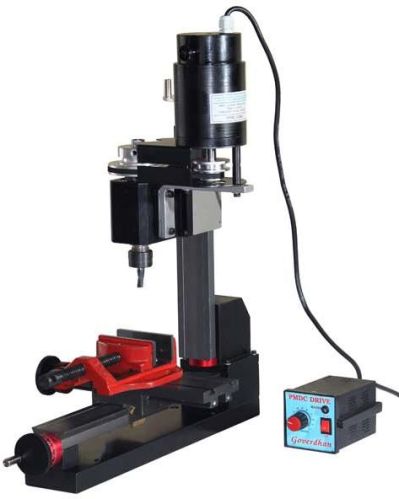

The CNC Milling Machine offered by us is preferred in various industries across the globe. Our machine is appreciated for it's easy to use feature and durability. We are capable of addressing small and bulk orders of the machine for our buyers. Customers throughout the world can obtain the range of CNC machine from us at most market leading prices.
Features
Innovate Standards
Options
| X Axis traverse | 200 mm |
|---|---|
| Y Axis traverse | 250 mm |
| Z Axis traverse | 160 mm |
| Table Length with'T' Slot | 450mm X 160mm |
| Spindle Inside Taper | ISO 30 |
| Spinde Speed | 100-3000RPM Infinitely variable |
| Cross Slide Inclination | 0 Degrees |
| Cutting Tool Size | 1 to 25mm Dia Shank using collets.(Dia 80mm |
| Spindle motor D | 500W |
| Automatic Lubrication | Optional |
| Input System | Metric/ Inch |
| Control Axes | Simultaneous axes |
| Interpolation | Linear,Circular,elliptical and Parabolic,Slot milling, |
| Minimum increment | Rectangular and circular slot milling |
| Minimum Movement command -X | 0.005 mm |
| Minimum movement command -Z | 0.005 mm |
| Repeatability | ± 0.02 mm |
| Rapid Feed Rate X & Y | 400 mm / min |
| Raprd Feed Rate -Z | 800 mm / min |
| Dwell (Seconds) | Programmable |
| Backlash compensation | Provided |
| Speed override | 40%-160% |
| Feed override | 20%-120% |
| Type of Control system | PC based system |
| Real Time Tool Path Simulation | PC based system |
| Floor Area | 1100 x 1000 X 1700 mm |
