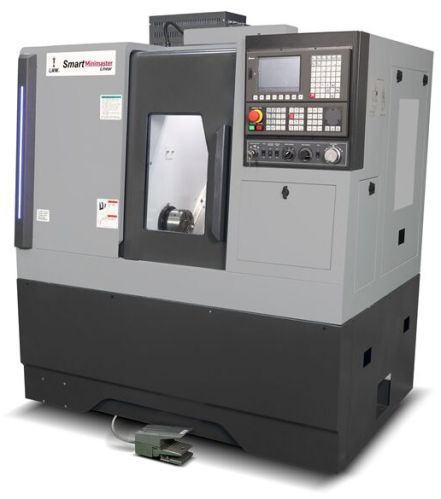

| DESCRIPTION | UNIT | SMART MINIMASTER LINEAR |
|---|---|---|
| CAPACITY | ||
| Swing over bed | mm | 350 |
| Chuck dia, max | mm | 135 |
| Max. Turning Diameter | mm | Ø130 |
| Max.Turning Length | mm | 200 |
| Admit Between Centres | mm | - |
| SPINDLE | ||
| Spindle Nose | Type | Flat (ɸ110) |
| Hole through Spindle | mm | Ø36 |
| Spindle Speed | rpm | 6000 |
| Spindle Motor Power (Cont./S3 25%) | kW | Delta - 3.7 / 5.5 |
| FEED | ||
| Inclination of Carriage | Deg | 45°to Horizontal Plane |
| Cross Travel X - Axis | mm | 200 |
| Longitudinal Travel Z - Axis | mm | 215 |
| Rapid traverse (X/Z) - Axes | m/min | 30 / 30 |
| TABLE | ||
| No. of tool holders | Nos | 5 |
| Tool Shank Size | mm | 20 x 20 |
| Maximum Boring Bar Diameter | mm | Ø 32 |
| Turret Indexing | Type | - |
| Turret Indexing Time | Sec | - |
| TAILSTOCK | ||
| Quill Diameter | mm | - |
| Quill Stroke | mm | - |
| Quill Taper | Type | - |
| CNC SYSTEM | ||
| Controller | Type | Delta |
| MACHINE SIZE | ||
| L x B x H | mm | 1575 x 1126 x 1700 |
| Weight | Kgs | 1800 |
