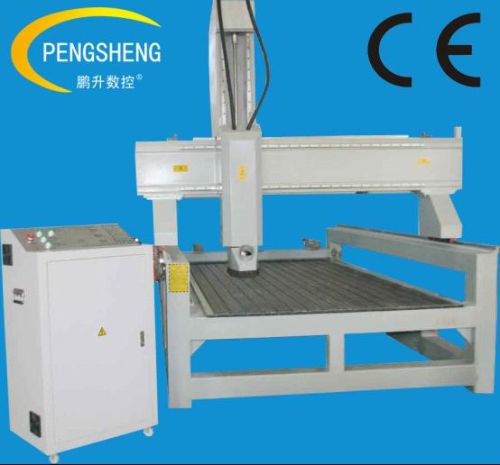

CNC Mold Router

₹ 2.70 Lakh / 100000 100000 Piece

MOQ1 Piece(s)
Diameter of cutter 3.175--12.7
Z structure Imported ball screw
Operating system NC Studio(Option DSP,SYNTEC,LNC)
Spindle rotating speed 0-24000r/min
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Command G code*.u00*.mmg*plt
Work-holding By suction
X,Y structure Rack and pinion transmission
Spindle power 2.2kw/3.0KW/4.5kw/6kw/7.5kw
Spindle rotating speed 0-24000r/min
Resolution 0.01mm
Operating system NC Studio(Option DSP,SYNTEC,LNC)
Cooling mode water cooling
Diameter of cutter 3.175--12.7
Z working area(mm) 300/400/600/1000
Z structure Imported ball screw
Working voltage AC220V/50/60 Hz ,2PH /AC380V/50/60 Hz ,3PH
X.Y working area(mm) 1600*3500
Drive Motor )Stepper(Option:Servo
Max speed 45m/min

We are offering cnc mold router
this kind machine is special designed for mold industry,the gantry is heightened. It can be used to processing large foam, suitable for processing large ultra-thick material.
.it adopt taiwan linear guideway, self-lubricating block.when carving equal force in all directions to ensure that the mechanical precision and intensity.
Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.the side board of gantry adopt steel structure.
X and y axes adopt rack and pinion transmission,fast working,high efficiency and low cost;z axis adopts germany ball screw,with high precision and long life time.
Well compatibility:cad/cam designing software e.g.type3/artcam/castmate/wentai etc.
It has the function of re-carving after break point and power failure.
It has the function of forecasting process time.
Lubrication system.
9.advanced design of the machine make sure strong cutting and guarantee the engraving precision.
