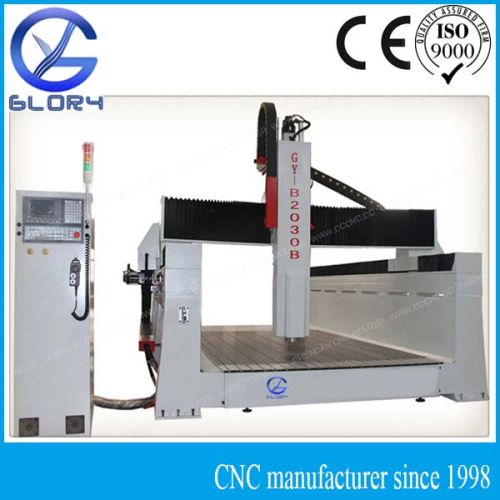

CNC Molding Machine

We are offering Cnc Molding Machine ,
Highlight:
This machine is specially used for engrave large non-metallic mould, especially automotive foam mould, wooden ship mould, aviation and train wood mould. And wood mould casting, food mould (e.g. Moon cake mould) and other mould making.
Key features:
1. Seamless steel lathe bed
2. Germany ball screw
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Servo motors
7. Manual oil-injection system
8. Syntec operating system
9. X and Y axis is equipped with dust-proof cover
10. High soft electric cables
11. French small electric parts
12. Protective balance cylinders for Z axis
Ideal for:
1. Timber, wood
2. EPS (any kind of foam)
3. Plastics, MDF
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
SPECIFICATION GY-BS2030B
Working Area
(X Axis) 2000mm
Working Area
(Y Axis) 3000mm
Clearance (Z Axis) 1000mm
Machine Dimension 2300*4000*1100mm
Spindle Air-cooled 9kw HSD
Spindle Speed Adjustable 0-24,000 rpm
Tool Change Manual Tool-Change
Drive System
(X & Y Axes) Helical Rack & Pinion, 1.5 module
Linear Guide Taiwan Hiwin 30mm
Drive System
(Z Axis) Germany ball Screw
Drive Motors Servo motors, Yaskawa
(three 1.3kw motor for X, Y axis, one 850w for Z axis)
Inverter Delta
Driver Yaskawa
Command G code
Cutter diameter φ3.175-φ20mm
Maximum Travel Speed 50mmin
Maximum Working Speed 30mmin
Precision 0.01mm
Table Top Aluminum T-slot table protected with PVC
Controller Taiwan Syntec
Power Requirements 3-phase 380V50HZ
Custom sizes and upgrades for the components are available on request.
Optional parts:
1. NC Studio controller
2. Added rotary axis
3. Automatic oil-injection system
4. Higher gantry
5. Water-cooled spindles, etc.
