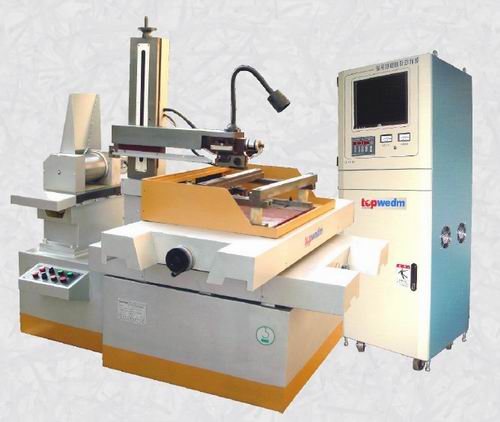

CNC Molybdenum Wire Cut EDM Machine, Brand Name : TOPWEDM

Get Latest Price

MOQ1 Set(s)
Brand NameTOPWEDM
Travel of UV axes60*60 mm
Worktable Size900*600 mm
Travel of XYZ axes500*400*400 mm
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Company Information

Member Since 16 Years
Nature of Business Manufacturer
Year of Establishment 2006

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameTOPWEDM
Travel of UV axes60*60 mm
Max Taper Cutting Angle60 degrees dual 2 sides
Travel of XYZ axes500*400*400 mm
Control systemHL or Wincut
Worktable Size900*600 mm
Wire Diameter Applicable0.12~0.25 mm

We are offering cnc molybdenum wire cut edm machine.
Specifications
worktable dimension:900*600mm
travel of x,y,z axes:400*500*400mm
max workpieces' dimension:700*500*400mm
max workpieces' weight:800kgs
travel of u,v axes:30*30mm
diameter of elctrode:0.12~0.25mm
dimension of plant:1700*1400*1700mm
standard power supply:380v±10%/50hz/2kva
control system
communications integrator(ci):rs232/nic/usb
iso code:3b/g code
file format:autocad/dxf/iges/autop.
