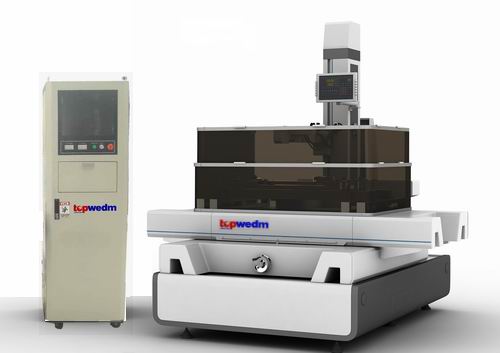

CNC Molybdenum Wire Cut EDM Machine, Brand Name : TOPWEDM

We are offering cnc molybdenum wire cut edm machine.
Parameters
unit
model dk7780a/f/j
travel x、y、z
mm
800×1000×600/800(a/f)
800×1200×800(j)
travel u、v
mm
60-240
max. Taper angle
°/mm
±3-30°/80
diameter of wire
mm
0.16—0.25
wire tension
n
10 - 30
wire running speed
m/s
1 - 12
max. Cutting speed
mm2/min
≥150
best surface finish
μm(ra)
≤1.2
repeat positioning accuracy
mm
0.008
precision machining
mm
0.012(20×20×20)
machine dimension (w×d×h)
mm
2580×2400×2300(a/f)
2580×2500×2400(j)
weight total
kg
5000(a/f)
5300(j)
work tank
driver of worktable
10pats 5 phase driven by step motor
driver of uv axis
6pats 3 phase driven by step motor
max. Workpiece weight
kg
2000
max. Workpiece dimension
mm
1300×950×600/800(a/f)
1500×950×600/800(j)
work table dimension (w×d)
mm
1450×1000(a/f)
1650×1000(j)
electrical supplies
standard
----
3×380v ±10% ,50/60hz 2.0kva
other supply
----
200v / 415v
room condition
----
15-30c / 40-80%
dielectric unit
filter accuracy
um
----
10
dielectric unit capacity
l
50
80
cnc system
cabinet dimension (w×d×h)
mm
950×530×750
550×530×1650
cnc type
----
pc based controller, standard industrial dom, 15″lcd
communication
----
rs232, nic ,usb
axis controlled
----
4 axis simultaneous
iso code
----
linear-circular-taper-4 axis program with g codes
single pulse advancing accuracy
mm
0.001
language
----
english-chinese
dimension
----
metric-inch
