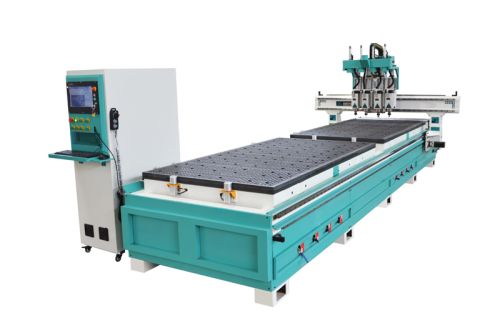

CNC Nesting Machine With Double Zones

CNC Nesting Machine With Double Zones Missile-SD9SD6SD4
SD9SD6SD4 series cnc wood machine with double-table processing in turn, one station is machining, the other is up-down loading, effectively improving the efficiency.For Z-axis part of the head,you can choose: four processes(SD4),or double-process&drilling(SD6), or 12 carousel  magazines&drilling(SD9).
MISSILE-SD9SD6SD4 CNC Nesting Machine Product Parameters
XYZ working area 1300*2500*200mm
XYZ Traveing Positioning Accuracy ±0.05mm
XYZ Repositioning Accuracy ±0.05mm
 Table Surfce Vacuum table
Max.Traveling Speed 60000mmmin
Max.Working Speed 25000mmmin
Spindle Power HSD Air-cooling 9KW
Drive&Motor YASKAWA servo
Tool Storage Capacity 12
Drilling Capacity 9
Working Voltage AC380V50Hz3PH
Operating System Syntec Control System
MISSILECNC is a professional CNC machine manufacturer for CNC Router, Acrylic Cutting Machine, Cabinet Making Machine, CNC Router machine, CNC Machining Center, CNC Machining Center For Aluminium, CNC Nested Based Router etc.
MISSILE-SD9SD6SD4 Features
●Thick square tube welded bed with tempering aging treatment, run more smoothly.
●High precision rack, XYZ axis adopt with servo motor, ensuring the cutting non-serrated.
●Double-table processing in turn, one station is machining, the other is up-down loading, effectively improving the efficiency.
●For Z-axis part of the head,you can choose: four processes(D4),or double-process&drilling(D6), or 12 carousel  magazines&drilling(D9).
MISSILECNC mainly supply CNC Nesting Machine, CNC Wood Machine, CNC Nesting Machine With Double Zones with best price and high quality.
