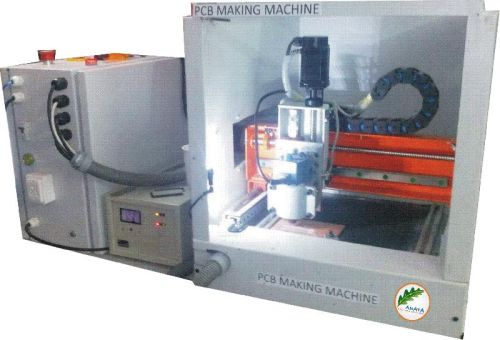

CNC PCB Drilling Machine

Listing ID #2534476

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

We have the latest equipment and technology for the strict checking of raw material at the initial stage only. We ensure that prior to manufacturing the material is checked on the grounds of quality. Buyers can rely on our products, as they conform to international quality norms and are trustworthy. The avant-grade CNC PCB Drilling Machine we offer are available in the warranty period of 24 months.

View More Details

Send Enquiry

Product Details

Specifications

Model :	Anaya CNC R3040SH
Effective Working travel	400x300x80mm
Machine Size	500x600x500mm
Frame Material :	Fabricated Steel body / Cast Iron Casting body*
Driving Units X Y Z Hiwin Make	New 2010 Ball Screw
Sliding Units X Y Z Axis	New R20HGH Hiwin Make
Driving Motor	3 Axis Stepper / Servo feedback* Drive
Spindle Motor	1.5kwatt VFD Spindle / 2.2Kwatt / 800Watt / 4.5Kwatt*
Collets	ER16/ 3.175 Collets, 6mm, 8mm, 10mm
Spindle Speed	3000 ~ 24000 RPM
Resetting Accuracy	0.05mm
Engraving Accuracy	0.04mm
Control Unit	3 axis controller with spindle Control
Carving Instructions	G Code, Tap Files, NC CNC NCC Files
Communication Interface	Through parallel connection with computer
Software environment	Windows 2000 / XP
Carving Speed	0-2500mm/min Different Materials Speed Differs
Warranty	1 year machined parts
Machine Weight	100kg
Power Supply	220V AC/50Hz
Power (Watt)	1.5kWatt + 1.5Kwatt
Computer Connection	On board Parallel port
Acceptable Software	Mach3
Bits 3Nos.	VBit, 3mm, 6mm ball nose cutter,
Clamp Set	2 Nos Spanners, 4 clamp plates with nut & Bolts

Applications	PCB Engraving & Drilling, Trophy, Momentoes, Modular Furniture Parts Aluminum, Brass, Copper Cutting, Engraving, Aluminum Engraving for Rubber stereo Dies Brass, Copper, MS Label engraving & Cutting MDF Cutouts, Wooden 3D 2D Artworks 3D Statues manufacturing



Approx Price In INR	INR 186,000/-
Optional Parts	* Cast iron Casting body : Price + 25% , 3 axis Servo Drive : price + 10%, 2.2Kw Spindle : Price + 10000/-, ***4.5kwatt Spindle : Price + 35000/-
Warranty	Extended Warranty of 5 Years with 20% extra charges
