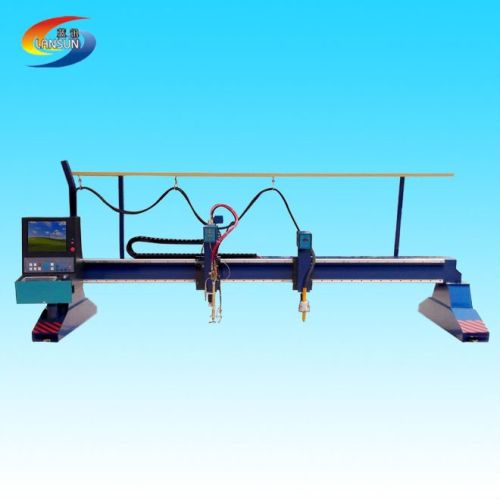

Features
1.Large working area, from 3000mm to 10000mm, lognitudinal rail can be lengthened.
2.Dual drive for stable performance.
3.Cross beam adopts optical axis linear guide to assure cutting accuracy.
4.Can configurate multiple flame or plasma station and auto torch height control system.
5.Can configurate any CNC system, import driving system and supervisory system,etc.
Application
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.
Tech Data
Cross Beam Length
4m (can be lengthened according to user's demand)
Longitudinal Rail Length
6m (Rail can be lengthened according to user's demand)
Effective Cutting Width (X axis)
3.2m
Effective Cutting Length (Y axis)
4.0m
Cutting Mode
Flame only; Plasma only; Flame and Plasma
Drive Mode
Dual-side
Drive Method
Rack and pinion drive for X and Y axes
Flame Cutting Thickness
5-200mm
Plasma Cutting Thickness
1-60mm (Depend on plasma power source)
Cutting Speed
0-12000mm per minute
Moving Precision
0.01mm per step
Power Source
220V 50Hz 500-1000W
Cutting Gas
Acetylene, Propane
Plasma Gas
Pressed air, Oxygen, N2
Marking Tool
Yes
Torch Height Controller
Auto arc voltage height control system
