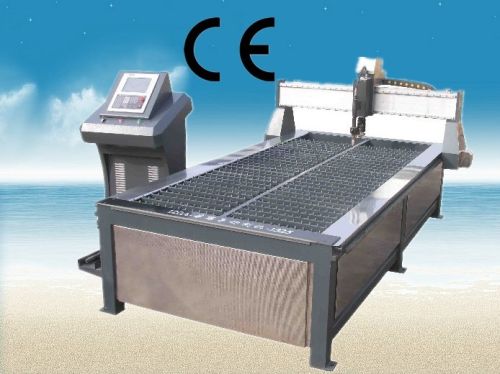

Cnc plasma cutting machine, Power Source : Electric

Specification Of CNC Plasma Machine MS-1530P
X,Y axis working area
1500×3000mm
Z Axis working area
200mm
Table size
1740×3500mm
Max.Moving speed
20m/min
Max.Cutting speed
8 m/min
Max.Cutting thickness
20 mm
Work Mode
Step motor
Guide way
Square (HIWIN)
Transmission
Rack
Control system
Nc studio
Plasma Power Supply
160A
Work Voltage
AC 380V 50Hz
Suitable Industry
advertising signs, logo making, decorative products, production of advertising and a variety ofmetal materials.cutting metal molds made of copper, aluminum, iron and so on.for steel, copper, iron,galvanized plate, titanium plate and other metal sheet cutting
Performance Characteristics
1.Imported guide rail, double four ball slider, heavy loading capability, smooth operation, high precision, long life.
2.High-speed stepper motor and driver, Y-axis using a dual-motor drive, to make high-speed operation up to 20 meters above the blank line speed, with the high power spindle can greatly enhance the carving speed more .
3.whole steel structure, high temperature tempering after welding to eliminate the stress treatment, distortion free, strong and lone life.
4.The plasma with high cutting speed, high precision, small slit, neat. Under traditional CNC system ,improved control method of cutting, avoid the secondary processing.
5.During the plasma is cutting, if the torch of plasma break at any point , take the torch out of the machine, adjust the torch, then the torch will automatically return to break points
6.Plasma can be automatically increased functionality, automatic ignition function, during working time, can be arbitrary adjust the speed up and down, but with stable performance.
7.Using advanced domestic CNC control system, compatible with type3/Artcam/Castmate /Ucancam and a variety of CAD / CAM Design Software
Guarantee & after sale service
Guarantee for 12 months,24-hour technical support by email or calling
User-friendly English manual and Video CD for machine using and maintaining.
