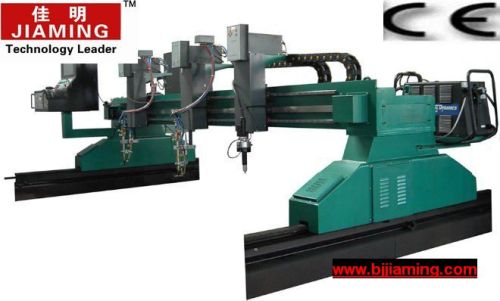

Cnc plasma cutting machine, Automation Grade : Automatic

Features

This cutter adopts gantry structure, its cross beam have many specifications, both of them adopt dual drive and lineal guide. Torch quantity is optional according to users demands, also can be configured as abnormity cutting and strip cutting.



Application

It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Tech Data

Cross Beam Length(X axis)
4m (can be lengthened according to user's demand)

Longitudinal Rail Length(Y axis)
6m (Rail can be lengthened according to user's demand)

Effective Cutting Width (X axis)
3.2m

Effective Cutting Length (Y axis)
4.8m

Cutting Mode
Flame only; Plasma only; Flame and Plasma

Drive Mode
Dual-side

Drive Method
Rack and pinion drive for X and Y axes

Flame Cutting Thickness
5-200mm

Plasma Cutting Thickness
1-60mm (according to the specification of plasma power source)

Cutting Speed
0-3500mm per minute

Moving Precision
0.01mm per step

Power Source
220V 50Hz 500-1000W




Cutting Gas
Pressed air, Oxygen,

Plasma Gas
Pressed air, Oxygen,

Marking Tool


Torch Height Controller (AUTO)
CHC600
Electic height control for flame cutting

PHC330
Arc voltage height control for plasma cutting
