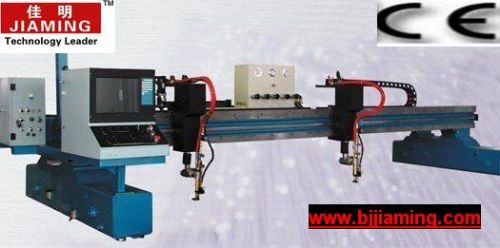

CNC Plasma/flame Cutting Machine, Automation Grade : Automatic

Features
This cutter adopts gantry structure, its cross beam have many specifications, both of them adopt dual drive and lineal guide. Torch quantity is optional according to users demands, also can be configured as abnormity cutting and strip cutting.
Application
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Tech Data
Cross Beam Length(X axis)
4m (can be lengthened according to user's demand)
Longitudinal Rail Length(Y axis)
6m (Rail can be lengthened according to user's demand)
Effective Cutting Width (X axis)
3.2m
Effective Cutting Length (Y axis)
4.8m
Cutting Mode
Flame only; Plasma only; Flame and Plasma
Drive Mode
Dual-side
Drive Method
Rack and pinion drive for X and Y axes
Flame Cutting Thickness
5-200mm
Plasma Cutting Thickness
1-60mm (according to the specification of plasma power source)
Cutting Speed
0-3500mm per minute
Moving Precision
0.01mm per step
Power Source
220V 50Hz 500-1000W
Cutting Gas
Pressed air, Oxygen,
Plasma Gas
Pressed air, Oxygen,
Marking Tool
Torch Height Controller (AUTO)
CHC600
Electic height control for flame cutting
PHC330
Arc voltage height control for plasma cutting
