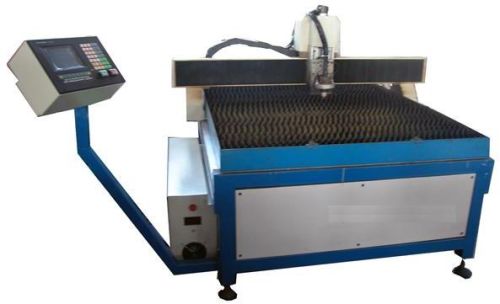

CNC Plasma Router 1325

CNC plasma engraving machine is a atomatic and high efficiency engraving equipment. It is widely used in all kinds of carbon materials, stainness steel and nonferrous metal precision sheet metal cutting.
Features of the machine:
●The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.
●The gantry structure, Y axis used dual-motor dual-driven system, X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
●Cutting mouth is small, tidy,and avoid a second dressing processing.
●It can appply to iron sheet, the alulinum sheet, the galvanized sheet, hundred steel plates , metal plates and so on.
●The numerical control system disposes high, the automatic striking arc, the performance is stable.
●Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents. The control system uses the U plate exchange processing document, easy to operate.
Perfrmance parameter
Engraving area：1300mm×2500mm
Processing thickness：0.5-15mm
Engraving speed：100-8000mm/min
Voltage：8.5kw
Input voltage：3phase380V
Power frenquency：50HZ
Current Plasma：60A
The mode of file transfer：USBInterface
Working method：Untouched arc striking
