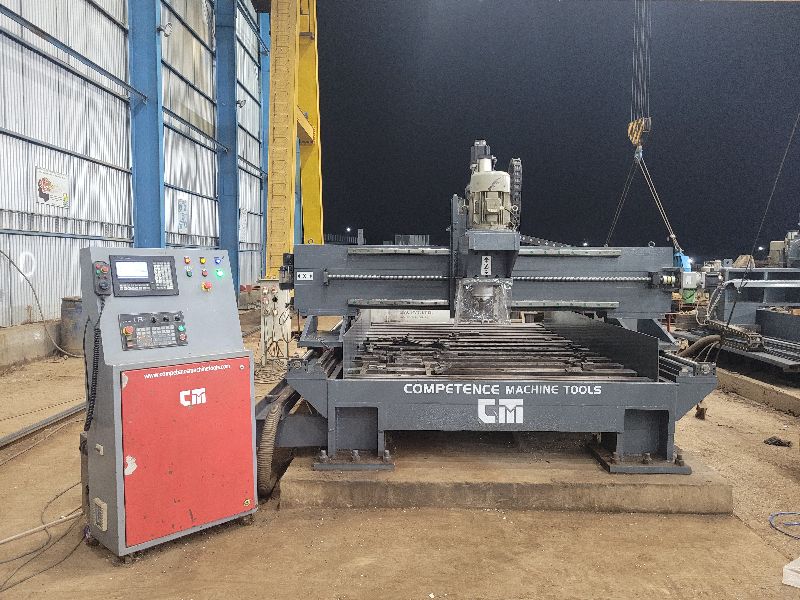

CNC Plate Drilling machine

Linear Motion

45 mm LM Guide &

Block For X ,Y& Z Axis

2M Rack In X,Y Axis,

40 mm  Ball Screw in Z Axis

Gear Box

1:5 Planetary Gear Box

Spindle Type

BT40 With Through Coolant

Spindle Motor

7.5 kw Spindle Motor,

 Max 6000rpm

Spindle Run Out

+/-2 Micron

Driving Motor

Servo motor drive

Repositioning Accuracy

+/- 50 Micron/Meter

Hole Diameter Tolerance

+/- 70-100 Micron

Drilling Capacity

Up To 40mm Diameter ( with U-drill only)

Maximum Drilling Thickness

Up To 100mm

CNC Controller

ADTECH

Lubrication

Easy Lube Make Automatic

Chip Conveyor

Manual trolley type Chip Conveyor

Axis Cover

PU Bellow Cover In All Axis

Machine Structure

Fabricated

Working Command

G-Code

Power Supply

430V , 50/60Hz-3 Phase
