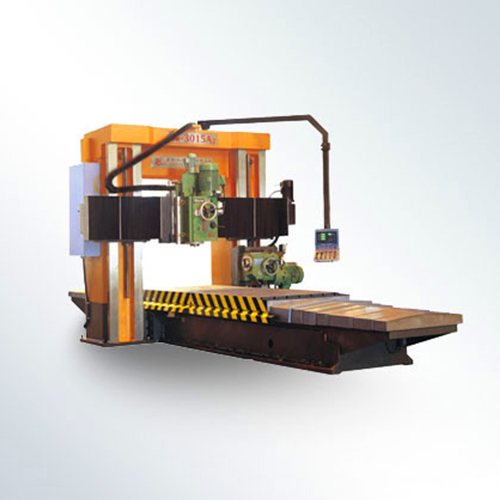

CNC Portal Milling Machine X2130

₹ 45.25 Lakh / Set

transportationshipment
Supply TypeSupplier
Preferred Buyer Location All over the world

Product name :CNC Portal milling machine X2130 Feature of CNC Portal milling machine The cast iron is treated by thermal aging and vibration aging secondary aging treatments, with full....

Company Information

HengshuiShengyongHeavy-dutyMachineToolManufacturingCo.Ltd.

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Product name :CNC Portal milling machine X2130
Feature of CNC Portal milling machine
The cast iron is treated by thermal aging and vibration aging secondary aging treatments, with full eliminating inner stress. The bed guide rail, beam guide rail, vertical guide rail are all done by ultrasonic frequency quenching treatments.
CNC Portal milling machine model:X2120 X2125 X2130 X2140
Technical specification of CNC Portal milling machine
Maximum workpiece size: Long 6000
Maximum workpiece size: Width 3100mm
Maximum workpiece size: Height 1400mm
Table speed 30-1500mmmin
Number of milling head 2
Power of Milling head 5.5kw7.5kw
Number of Side head 1
Power of Side head 5.5kw
Beam lifting speed 570mmMinute
Machine maximum volume: Long 13000mm
Machine maximum volume: Width 5400mm
Machine maximum volume: Height 3800mm
Machine weight 55T
