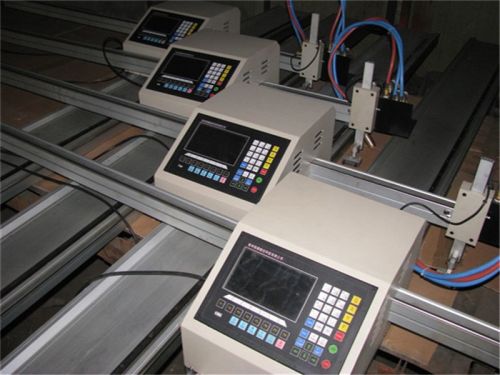

CNC Profile Cutting Machine

We are offering cnc profile cutting machine. Advantage:

1.broader cutting range

2.thick plate cutting and high applicability, high-intensity, labor-saving and space-saving

3.features which further utilize the performance of the equipment.

4.machine tool and beam are made of good quality aluminum alloy which is antideformed, durable, economical and decent.
Technical parameter:
model fw1530
input power source 220380v±10%v ac, 5060hz, 220w
cnc controller system flcnc
plasma cutting gas compressed air
flame cutting gas oxygen+ propane or acetylene
guide length × width × thickness (mm) 3500×273×60
the number of track support 3
effective cutting range(mm) 1500×3000
cutting speed (mmmin) 0-3000(max. 4000)
flame cutting thickness (mm)  5-150 (oxygen + acetylene or propane)
plasma cutting thickness (mm) depend on plasma cutter
operation precision ±0.2mmm
torch height controller arc voltage thc
nesting software standard version fastcam
gas pressure (mpa) maximum 0.1
oxygen pressure (mpa)
maximum 0.7
packing size 58*45*44cm,
360*42*35cm
g.w 140kg
