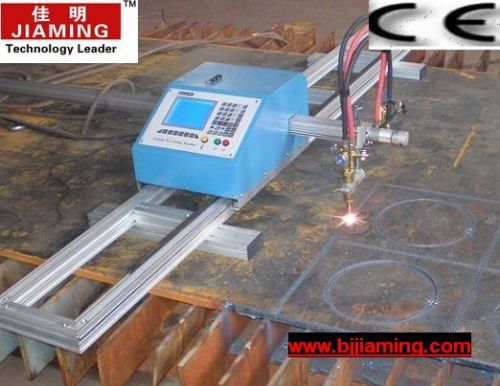

Automatic CNC Protable Cutting Machine

1. Processor technology, the program run faster refresh rate and the interface.
2. The whole process, reasonable structure with full control of optical isolators, super anti-interference ability of plasma.
3. 32M in the processing of file storage space to meet the program is running and processing complex, easy to handle large programs running.
4. Breakpoint recovery, processing power protection.
5. Plsama arc detection, the initial location, the corner signal, arc voltage to increase function(optional)
6. Can continuously track the origin back to the retreat.
7. 5.7-inch display, user-friendly interface, full Chinese menu (which can be translated into English), easy to learn.
Model
JM-S66
Input Vvoltage
220V
Power Frequency
50Hz
LCD Screen Size
5.7 Inch
Host body Size
500x360x300mm
X-axis effective cut(beam)
1200mm
Y-axis effective cut(rail)
2000mm(can be extended)
Track width
250mm
Cutting Speed
0~3500mm/min
Cutting thickness(flame)
6~150mm
Cutting thickness(plasma)
2~20mm
Weight
70.5kg(aluminum chassis) 150kg(steel base)
Gas input pressure
0~0.1Mpa
Input pressure of oxygen
0~1.0Mpa
For ags species
Acetylene, propane, methane
