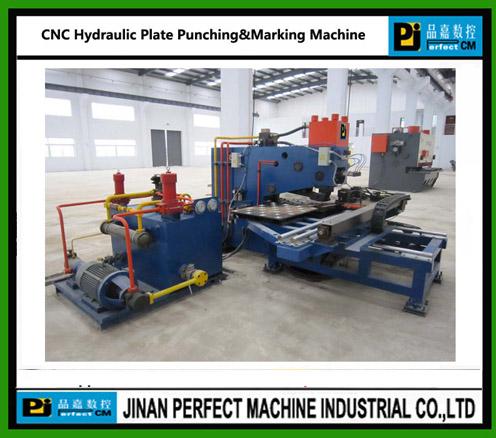

CNC Punching Machine For Plate, Certification : ISO

We are offering cnc hydraulic punching drilling marking machine for plates.
feature products
1.plate punching machine
3 in tower fabrication
4 power transmission tower line
product description
cnc hydraulic plate punching, drilling and marking machine
model tppd103104
applicable industry:
hydraulic plate punching drilling machine is used for punch and mark of joint plate in the field of iron tower.
it is also used to punch and mark of metal plate of other trade.
product basic parameter:
model tppd103
max size of work piece lxw(mm) 1500� 800
max. Diameter of punching (mm) 26
plate thickness of punching (mm) 5-25(q235)
5-20 (q345)
max. Diameter of drilling (mm) 50
plate thickness of drilling (mm) 40
punching force (kn) 1000
marking force (kn) 800
min. Distance between hole and plate edge (mm) punching 25
drilling depends on hole diameter
dimensions of characters (mm) 14x10x19
quantity of characters 12
die-stations 3
feeding speed of drilling(mmmin) 25~280
stroke of drilling spindle(mm) 180
rotation speed of drilling spindle(rmin) 120~560
precision accordance with gb2694
programming mode input by keyboard, rs232 interface, floppy disk and usb interface
overall dimensions lxwxh (mm) 3200x3000x2600
weight of machine (kg) approx. 5800
we welcome customers to visit our factory at any time. No wait, please order now!
Should Your Excellency need more information about us, please send us your inquiry. JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
