CNC Riveting Machine, Condition : Pneumatic or hydraulic

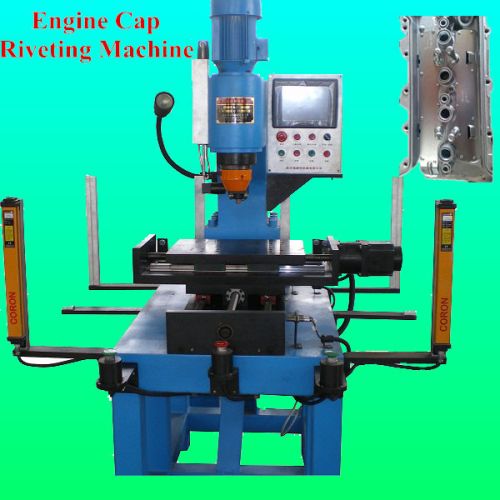

We offer engine cover riveting machine
programmable control radial riveting machine is a newly developped based on
tranditional common riveting machine, with the characteristic of stable and without
shaking during processing, smooth of surface after processed. It's a kind of exellent
equipment of mass production. This machine especially suitable to processing the
cover of car engine.
characteristics:
a.applied new automatic technologies
b. Programmable, simple and reliable
c.with x, y, z axis program control
d.workpiece clamping automatically
e.6.5 inch lcd touch screen
f. Digital pressure sensor
g.multi-safety sensors
h.single head or multi-head available
i.hydraulic or pneumatic as optional
j.manual, semi auto, automatic functions
k.display current pressure
l.plexiglass safety covered around the machine
m.automatic shutdown of time-lapse
specification:
1. Max.pressure 20kn
2. Max.processing ability φ12mm
3. Cylinder strocke 30mm,60mm,80mm, as optional
4. Riveting pin length 50mm, 85mm, 120mm, as optional
5. Two-dimensional bench 600mmx350mm
6. moves:
x-direction 600mm
y-direction 300mm
z-direction 70mm
7. Positioning accuracy ≤0.05mm
8. Forming shape semi-round,flate,reticulate,dish-shaped etc.
9. Physical size 1500mmx1000mmx1800mm
10.net weight 1000kg
■can reserve the connector mouth for synchronize clamp
