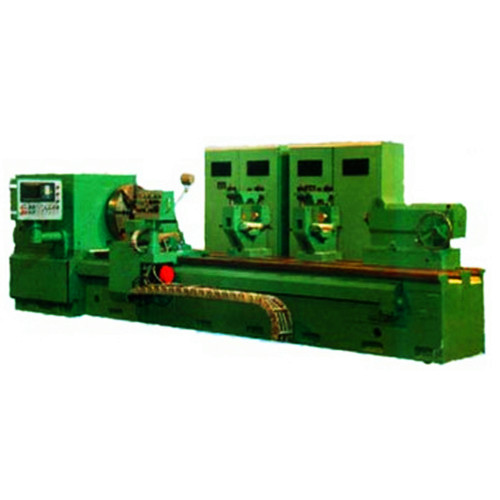

CNC Roll Horizontal Lathe Machine CK8463

₹ 45.25 Lakh / Set

transportationshipment
Supply TypeSupplier
Preferred Buyer Location All over the world

Product name :CNC Roll horizontal lathe machine CK8463 Structure of CNC roll horizontal lathe machine Roll turning lathe machine consists of bed,turret tool holder ,hydraulic system, PLC....

Company Information

HengshuiShengyongHeavy-dutyMachineToolManufacturingCo.Ltd.

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Product name :CNC Roll horizontal lathe machine CK8463
Structure of CNC roll horizontal lathe machine
Roll turning lathe machine consists of bed,turret tool holder ,hydraulic system, PLC system ,electrical cabinet,wire holder and so on
Technical specification of CNC Roll horizontal lathe machine CK8463
1 Maximum turning diameter of workpiece 300-630 mm
2 Maximum length of workpiece 253040 dm
3 Maximum weight of workpiece 8 t
4 Height of center 400 mm
5 Diameter of faceplate 630 mm
6 Maximum torque of faceplate 8 KN.m
7 Range of spindle speeds 1.6-125 rmin
8 Maximum cutting force of carriage 25 KN
9 Range of feed rates ( long) 1-4000 mmmin
10 Range of feed rates(Transverse) 1-4000 mmmin
11 Travel of tailstock quill 150 mm
12 Dimensions of mode steady supporting 200-300 mm
13 Power of main motor 22 KW
14 Machine weight(Approx) 15 t
15 Overall dimensions(L×W×H) 574×222×153 cm
