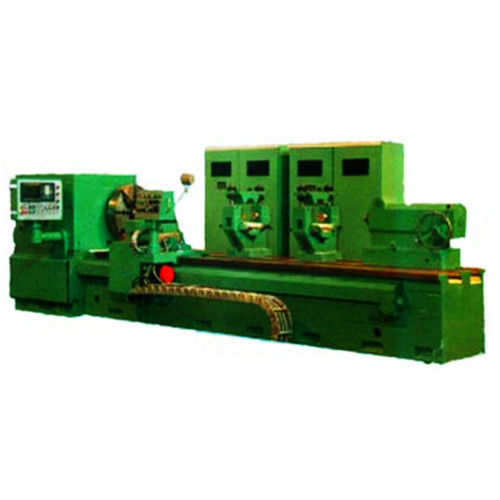

CNC Roll Turning Lathe Machine CK8480

₹ 45.50 Lakh / Set

transportationshipment
Supply TypeSupplier
Preferred Buyer Location All over the world

Product name :CNC Roll Turning Lathe Machine CK8480 Feature: Spindle box(headstock) adopts AC frequency variable motor , using hydraulic unit, automatic shift modes, stepless transmission....

Company Information

HengshuiShengyongHeavy-dutyMachineToolManufacturingCo.Ltd.

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Product name :CNC Roll Turning Lathe Machine CK8480
Feature: Spindle box(headstock) adopts AC frequency variable motor , using hydraulic unit, automatic shift modes, stepless transmission (longitudinal and cross movement).
Roll turning lathe model: CK8450 CK8463 CK8463 CK8480 CK84100 CK84125 CK84160
Technical specification of CNC Roll Turning Lathe Machine CK8480
1 Maximum turning diameter of workpiece 200-800 mm
2 Maximum length of workpiece 203040 dm
3 Maximum weight of workpiece 16 t
4 Height of center 550 mm
5 Diameter of faceplate 800 mm
6 Maximum torque of faceplate 20 KN.m
7 Range of spindle speeds 2-200 rmin
8 Maximum cutting force of carriage 50 KN
9 Range of feed rates ( long) 1-4000 mmmin
10 Range of feed rates(Transverse) 1-4000 mmmin
11 Travel of tailstock quill 200 mm
12 Dimensions of mode steady supporting 200-300 mm
13 Power of main motor 45 KW
14 Machine weight(Approx) 29 t
15 Overall dimensions(L×W×H) 1000×290×165cm
