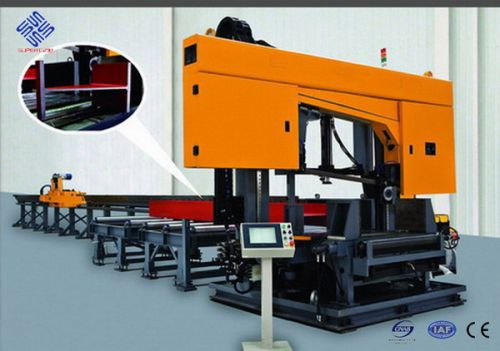

CNC Rotation Angle Band Saw

₹ 1.32 Cr / 165000 165000 Set

MOQ1 Set(s)
Minimum H beam size200 mm×75 mm
Rotation angle0°~45°
NameCNC rotation angle band saw for I beam
Sawing H Beam size1250 x 600 mm
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering cnc rotation angle band saw. First : technical parameter of model dj1250 band saw line sawing h-beam size ( without roation) (web height x flange width) max. 1250 mm x 600 mm....

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering cnc rotation angle band saw.
First : technical parameter of model dj1250 band saw line
sawing h-beam size ( without roation) (web height x flange width)
max. 1250 mm x 600 mm
mini 200 mm x 75 mm
saw blade size t:1.6mm w:67mm
motor power main motor 15 kw
hydraulic pump 5.5kw
saw blade linear speed 20~100 mmin
feeding speed 0-2 mmin software control
rotation angle 0â°~45â°
worktable height about 800 mm
overall size (l * w * h) about 2200x4400x2800 mm
weight about 8t
parameters of box beam rotation angle band saw line cnc dolly feeding:
1 cnc axis: w-axis
2 the servo motor power: 5.0kw
3 the mobile speed: 0 - 15mmin
4 the maximum weight of the feed: 8 tons
second: box beam rotation angle band saw line application
mainly used for sawing h-beam, channel, box beams, round cross-section and others sectional workpiece, with the advantage of superior performance, high sawing precision, high-power cutting, easy operation, function of procedure, parameter, date real-time display and high production efficiency.
