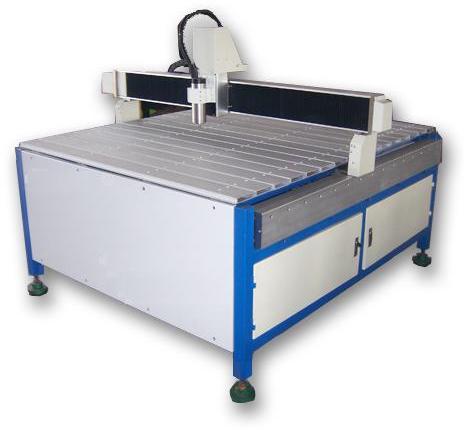

CNC Router 1212

1.The limit switchs select the Hall element ,They are long -life, high-reliability ,high pointing accuracy
2. Uses the high performance specialized machine driver ,the speed is quick, the movement is steady, cuts the moment of force is great. These ensure that the service is long time trouble-free. The maximum speed can reach 100 mm/S.
3.Specialized main axle frequency changer, main axle moment of force is big, the work stability is good
4.The lathe bed uses the steel structure and the high quality cast-aluminium , make sure the fuselage has the good rigidity
5.An electricity gas tank row of line according to the international standard design, the service convenient, the entire electric appliance box safe is reliable
Size of worktable (mm*mm) 1200*1525mm Power loss 2kw
Max trip of X Y Z (mm) 1200*1200*80 X、Y Guide rail The circular straight line rolls guide rail
Maximum carving speed(mm/s) 50mm/s Z Guide rail 　
Max inputting height (mm) 95mm X Y Lead screw Import boll screw
Max inputting width (mm) 1300mm Z Lead screw 　
Positioning accuracy (MM) 0.01 Main axle electrical machinery Water-cooled no-brushes frequency conversion 1500W
Main spindle motor speed (r/m) 6000-24000r/m Surface size (mm) 1482*1600*1200
Supply voltage AC220+-15% Weight(kg) 450kg
USE：kinds of craft , such as product label, cuts ,Carving , Anaglyph and so on，
Usable material ：Bamboo clappers, lumber，Acrylic double color board,，PVC，organic
board，marble etc
