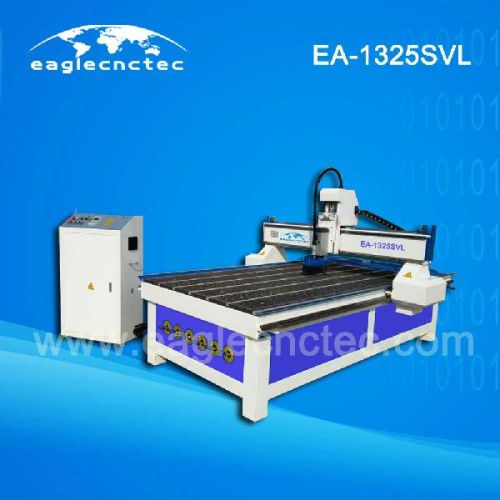

CNC Router 1325 Wood Carving Machine, Brand Name : EagleTec

₹ 3.64 Lakh / Set

MOQ1 Set(s)
Brand NameEagleTec
Country of OriginAC 380V/50-60Hz
Working Size1300*2500*200mm
Weight1200KGS
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameEagleTec
Country of OriginAC 380V/50-60Hz
Warranty24 months
After-sales Service Providedyes
Model NumberEA-1325SVL
Working Size1300*2500*200mm
Weight1200KGS
ConditionNew

Working size (x y z) 1300Ã�ï¿½2500Ã�ï¿½200 mm
driving motor stepper
controller dsp a11 or nk105g2
command g-code
max.traveling speed 35,000 mmin
max.working speed 15,000 mmin
work-holding by vac-sorb or clamp
vacuum pump 5.5kw water-ring, flow rate 230cmbhour
x y transmission helical rack and pinion , hiwin square linear guide way
z transmission taiwan tbi rolling ballscrew , hiwin square linear guide way
spindle origin hsd 3.0kw , air cooling, 0-18000 rpm variable speed
collet size er25, available diameter of cutter Ã�ï¿½3.175-Ã�ï¿½16mm
working power ac 380v50-60hz, 3 ph 4 wire or customized
max.power consumption 12kw
net weight 1200 kgs
packing plywood case suitable for sea shipment.
