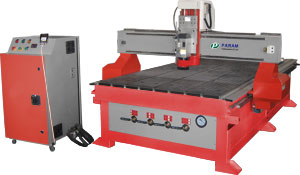

    CNC Router

    CNC Router

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Standard features:  Working area: 1300mm*2500mm*200mm 3.5 kw air cooling spindle made in China T-slot PVC table (with Aluminium Profile) Linear Rail：HIWIN Linear Guide way made....
    View More Details
    Send Enquiry

    Company Information

    Param Technosystem Pvt. Ltd.
    location Hojiwala Industrial Estate, Surat, Gujarat
    View Number
    • calendar Member Since 12 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    Standard features:

    Working area: 1300mm*2500mm*200mm
    3.5 kw air cooling spindle made in China
    T-slot PVC table (with Aluminium Profile)
    Linear Rail：HIWIN Linear Guide way made in Taiwan
    DSP controller system , Tool sensor, One set woodworking tools
    Original type 3 software, 1G U disk,
    Inverter：Taiwanse Delta Inverter
    Electronic Parts：German Schneider Electronic Spare Parts
    Switch：Japanese OMRON Switch
    Cable： Highly flexible towline-only Cable Imported fire-resistant double-sheathed.Could be bent 300 000 times
    Voltage: 3PH 380V 50HZ

    Package: plywood case



    Option items

    1Change HIWIN Linear guide made in Taiwan to THK Linear guide made in Japan:
    2

    Oil mist cooling system: （suggest to add if engrave on metal）

    3Change the stepping motor to DELTA Servo motor:
    4Vacuum system with Chinese Vacuum pump,5.5 KW, 160 CBM/h

    4.1

    Type A: Vacuum table in Zones (for size 1325 machine):

    4.2

    Type B: T-slot vacuum table (for size 1325 machine) :

    4.3

    Change the Chinese vacuum pump to Germany Becker pump (please check the price with seller)

    5Change the Chinese spindle to Italian HSD Spindle

    5.1

    3.0 KW HSD:

    5.24.5 KW HSD:
    5.36.0 KW HSD:
    6Dust collect system

    6.1

    3.0 KW single bag:

    6.2-5.5 KW single bag:
    7Change DSP system to Ncstudio system

    7.1

    without handwheel, for Stepping motor machine :

    7.2with handwheel, for Stepping motor machine:
    7.3without handwheel, for Servo motor machine :
    7.4with handwheel, for Servo motor machine:
    7.5change the normal distributor box to distributor box that can hold computer:
    8Working area : 1500*3000mm / 2000*3000mm / 2000*4000mm (please check the price with seller)
    9If the voltage is not normal, please check whether is necessary to add the transformer and its price with the seller.
    10Z axis up to 300mm:
    11

    Change the plywood case package to wooden case with Fumigation certificate:


    Features and Functions:

    •This is a cost effective CNC Router which adopts high quality spare parts in the world. .
    •Fast speed and high efficiency. Engraving speed could be 15 m /min
    •

    High precision . Products without burr and with smooth bottom face and profile


    Configuration

    •

    Spindle：Paaram Air coolant spindle, NSK Bearing,Silicon Steel Sheet ( Option: Italian HSD Spindle.)

    •Inverter：Taiwanse Delta Inverter
    •

    Electronic Parts：German Schneider Electronic Spare Parts

    •Switch：Japanese OMRON Switch
    •Linear Rail：Taiwanese Square HIWIN Linear Rail
    •

    Cable：MAXICAM Highly flexible towline-only cable imported fire-resistant double-sheathed which could be bent 300 000 times .



    NO.Items Parameters

    Option

    1Working Area
    X
    Y
    Z
    1300mm
    2500mm
    200mm
    <=2000mm
    <=5000mm
    <=450mm
    2Table Size 1400x2900mm
    3Accuracy
    Working Accuracy
    Repositioning accuracy
    0.04mm
    0.05mm

    4Structure
    Table Size
    Structure of Xã€Yã€Z
    T-Slot Extrusion PVC
    Xã€Y with gear rack, Z with ball screw
    		Vacuum
    5Speed
    MAX Travelling Speed
    MAX Working Speed
    32000mm/min
    15000mm/min

    6Spindle
    Spindle Power
    Spindle Speed
    3.5 KW
    0-18000r/min
    		Italian HSD Spindle
    7Drive StepperServo
    8Software Type 3Ucancam , etc.
    9Working Voltage AC380V/50HzAC380V/60Hz
    10Commend Code G Code
    11Operating System DSPNCSTUDIO
    12Net Weight 1100KG
    13Gross Weight 1250KG
