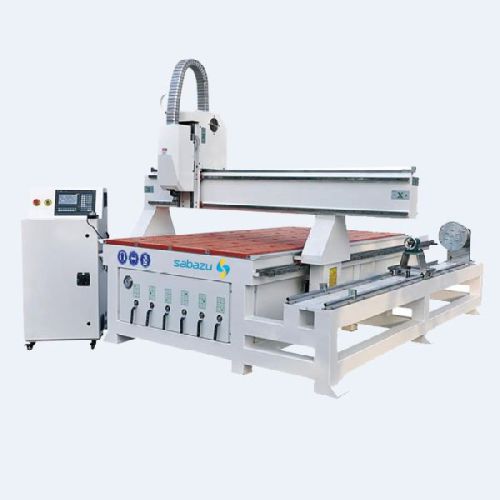

CNC Router SR408R with rotary axis is one of the most popular models for many applications. We offer any options for this model for different industries. Besides, the machine with rotary axis is one of the state of the art CNC machines designed and developed for carving industry focusing on cylindrical as well we flat engraving/carving and cutting application with its 4th axis in place making 3D carving on cylindrical surface on any wood. The machine is easy to use, you will be acheving basic routing tasks and roducing your pieces in on time

FEATURES

Model No: SR408R
X, Y, Z working area: 1300*2500*200mm, Rotary attachment diameter 400mm, length 2500mm
Table size: 1465*3000mm
Resolution: ±.03/300mm
Repeatability: ±0.02mm
Lathe Structure: Welding structure X Structure: Rack pinion and linear rails
Y Structure: Rack pinion and linear rails
Z Structure: Ball screw and linear rails
Max. consume power: 10.5kw
Max. rapid Speed: 0-32000mm/min
Max. working Speed: 0-20000mm/min
Spindle Power Motor: 3.0kw/4.5kw/6.0kw/7.0kw
Italian HSD spindle Spindle Speed: 0-18000rpm
Working Mode: Stepper motor
Working Voltage: AC220V/380V,50/60Hz,3PH
Command Code: G Code (*uoo,*nc,*mmg,*plt)
Operating System: Windows control system
Interface: USB System Memory: 128 M or flash drive
X,Y Working Delicacy:
