CNC Router

₹ 30.03 Lakh / 45000 45000 Piece

MOQ1 Piece(s)
after sale engineer support2 years warranty
high qualitylow price
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering Cnc Router. Working Area: 2100x2800mm Automatic Tool Changing System (7+1) Bacalite Flat Table X-Y1-Y2 Axis 1 Kw Delta Servo Motor R:110 Reducer Z Axis 0.75 Kw Servo Breaking....

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2007

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

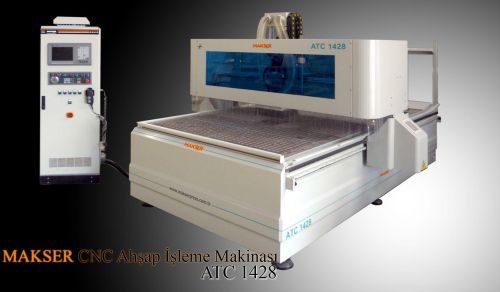

We are offering Cnc Router.
Working Area: 2100x2800mm
Automatic Tool Changing System (7+1)
Bacalite Flat Table
X-Y1-Y2 Axis 1 Kw Delta Servo Motor R:110 Reducer
Z Axis 0.75 Kw Servo Breaking Motor
7.5 Kw 18.000 rpm AREL Spindle Motor
305 m3h DVP Vacuum Pump
Hust Professional CNC Control Panel
ALPHACAM 2D Software(3D Upgrading and Part Reading Ability,Optional)
Electrical Systems Delta and Schneider
X-Y Axis Speed 66 mmin
Program Sensitivity 0.001mm
Working Sensitivity 0.001mm
Positional Sensitivity 0.001mm
Maximum Power Consumption 18,25 KW
X-Y Axis Moving with Helical Gear
Z Axis Moving with Screw Mil
2 Pieces X Axis Linear Rail
Right-Left 2 Pieces Y Axis 35 and 25 INA Linear Rail
2 Pieces Z Axis Linear Rail
Weight:3200 Kg
Fault Warning and Determining System
Working with ISO GCODE
Working with DXF, DWG,IGES Fails
1 year Part ,2 years Service Guarantee
110 Pieces Free Macro (Door+Kitchen Cabinet)
Online Service
Fast Service and Intervention in Maximum 3 workday
Automatic Time Adjusted Lubrication System
Automatic Air Sensor to Shut down machine when the Air Presseure drop.
Axises are Protected with Switches.
