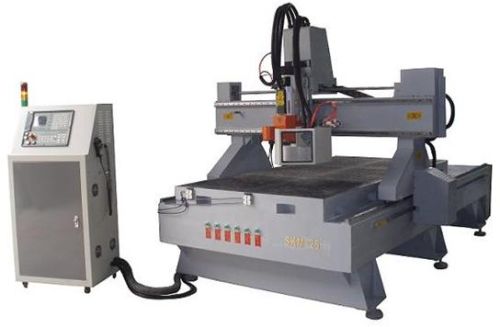

We are offering skm25 cnc router with atc.
feature :
engraving size : 1300x2500mm
auto tool changer : 8 station tool changer in circle, faster to exchanging tools.
control system: taiwan lnc control system
spindle: 5kw chinese water cooled, or italy 7.5kw air cooled
vacuum : 6 seperated vacuum zones, 2 sets oil free vacuum pump made in china
imported linear square orbits for three axies, imported ballscrew for z axises, gearwheel for xy axises
software: type 3 software
model skm25
x,y working area 1300mmx2500mm
z working area 200mm
repositioning precision 0.04mm
max traveling speed 50000mm/min
table structure vacuum table
operation mode gcode*.u00*.mmg*.plt
x,y,z structure z ball screw, x,y gear wheel
working voltage 3ph ac380v/50hz
spindle power 5kw chinese water cooled
option : 7.5kw italy air cooled
spindle rotating speed 0-18000rpm/min
drive motor japan servo motor
operation system taiwan lnc control system
