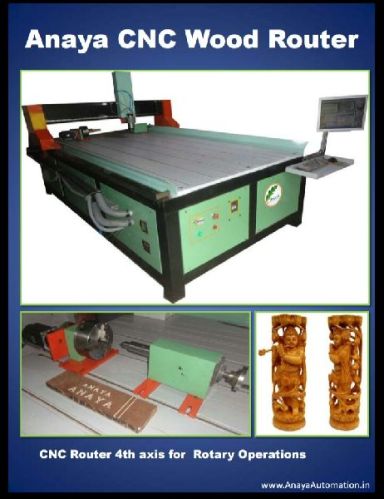

CNC Router Furniture Making Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

CNC Router For Wooden Furniture In order to deliver the orders on time, we have backed ourselves with advanced logistics facilities. We have with us a well-maintained and capacious storage unit that is facilitated by advanced and automated warehousing system, which is operated and supervised by experts only. Our cutting-edge CNC Router Furniture Making Machine works at the speed of

View More Details

Send Enquiry

Product Details

Specifications

Model	Anaya CNC R3040SH	Anaya CNC R4060SH	Anaya CNC R6090SH	Anaya CNC R13090SH
Effective Working travel	400x300x80mm	400x600x80mm	900x600x80mm	1200x900x150mm
Machine Size	500x600x500mm	800x800x500mm	1100x800x500mm	1400x1100x800mm
Frame Material	Fabricated Steel body / Cast Iron Casting body*
Driving Units X Y Z Hiwin Make	New 2010 Ball Screw	Rack & Pinion
Sliding Units X Y Z Axis	New R20HGH Hiwin Make
Driving Motor	3 Axis Stepper / Servo feedback* Drive
Spindle Motor	1.5kwatt VFD Spindle / 2.2Kwatt / 800Watt / 4.5Kwatt*
Collets	ER16/ 3.175 Collets, 6mm, 8mm, 10mm
Spindle Speed	3000 ~ 24000 RPM
Resetting Accuracy	0.05mm
Engraving Accuracy	0.04mm
Control Unit	3 axis controller with spindle Control
Carving Instructions	G Code, Tap Files, NC CNC NCC Files
Communication Interface	Through parallel connection with computer
Software environment	Windows 2000 / XP
Carving Speed	0-2500mm/min Different Materials Speed Differs
Warranty	1 year machined parts
Machine Weight	100kg	250kg	250kg	500kg
Power Supply	220V AC/50Hz
Power (Watt)	1.5kWatt + 1.5Kwatt	2.5kWatt + 1.5Kwatt	3.0kWatt + 1.5Kwatt	3.5kWatt +1.5Kwatt
Computer Connection	On board Parallel port
Acceptable Software	Mach3
Bits 3Nos.	VBit, 3mm, 6mm ball nose cutter,
Clamp Set	2 Nos Spanners, 4 clamp plates with nut & Bolts
Applications	PCB Engraving & Drilling, Trophy, Momentoes, Modular Furniture Parts
	Aluminum, Brass, Copper Cutting, Engraving, Aluminum Engraving for Rubber stereo Dies
	Brass ,Copper, MS Label engraving & Cutting
	MDF Cutouts, Wooden 3D 2D Artworks 3D Statues manufacturing
Approx Price In INR	INR 186,000/-	INR 225,600/-	INR 275,200/-	INR 318,000/-
Optional Parts	* Cast iron Casting body : Price + 25% ,3 axis Servo Drive : price + 10%, 2.2Kw Spindle : Price + 10000/-, ***4.5kwatt Spindle : Price + 35000/-
Warranty	Extended Warranty of 5 Years with 20% extra charges
