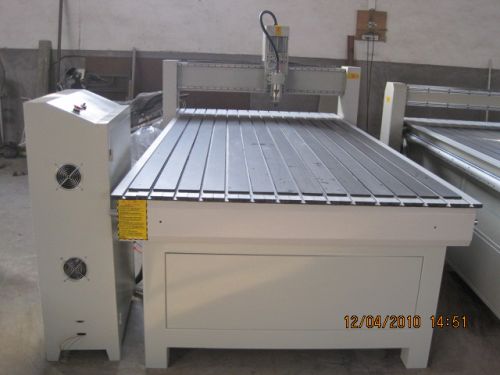

CNC Router Machine Zk25-b

CNC Router machine YHm25-B
Items parameters
Working areas X 1300mm
Y 2500mm
Z 200mm
Transmission
systems X Rack gear and pinion drive
Y Rack gear and pinion drive
Z Ballscrew drive
Guide rails
system X Linear square rails
Y Linear square rails
Z Linear square rails
Spindle Power 3.0KW
Speed 24000rpm
Cooling type Water cooling
Origin Jiangsu,China
Drive systems X Stepper motor with driver
Y Stepper motor with driver
Z Stepper motor with driver
Servo motors and drivers Made in China
Fixtures Clamp
Machine body Welded structurer steel pipe
Software envorionment Windows98/2000/XP
Control systems NC studio control system/DSP offline control system
Compatible files format G code;u00;mmg;plt
Compatible software UcancamV8/Type3/Artcam
Working voltage AC380V/50-60HZ 3Phase
Table size 1440*3040mm
Max travel speed 35m/min
Max engraving speed 30m/min
Interface type USB
Dust absorption Dust collector(optional)
Processing materials Wood,plastic,glass,metal,stone and so on
Optional Italy HSD spindle
vacuum table system
dsp offline control system
