一．Features:
1. The bed lathe is made of cast steel, analyzed and designed with FEA ,relieving stress, so the working table is more stable
2. double linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeat.
3. USB CNC system can remember and preserve when electric cutting. 128 flash memory to work without computer.
4 high speed and efficiency, empty speed is up to 30000/min, for engraving wave plank, the speed can reach 20000mm/min.
二. Application:
these machine is suitable for engraving and cutting Density board, Door, computer table, furniture and nonmetal material.
三．Parameter

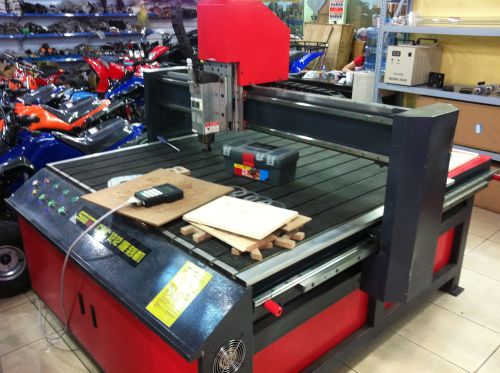

Model SB-1212A
Working area 1200*1200*200mm
Spindle motor 3kw inverter-driven air cooled spindle motor
Running speed 30000mm/min
Rotating speed 24000rpm
Engraving tools ï¿ 3.175mm/ï¿ 6mm
Software Type3,Artcam, Ucancam, Caxa, Mastercam, UG
Machine accuracy ±0.04mm
Weight 450kg
Overall dimension 1500*1900*1750mm
