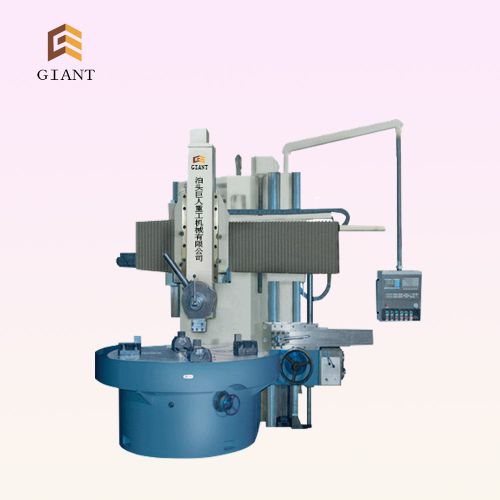

CNC Single Column Vertical Lathe Machine

₹ 31.68 Lakh / 420000 420000 Set

MOQ1 Set(s)
Max. height of work piece（H）1250mm
Max. machining diameter2000mm
Max. weight of work piece（W）8ton
Table diameter1800mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Botou Giant Heavy Industry Machinery Co., Ltd

Member Since 11 Years
Nature of Business Supplier
Year of Establishment 1980

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering cnc single column vertical lathe machine. Parameters unit ck5120a
max. Machining diameter mm 2000
max. Height of work piece（h） mm 1250
max. Weight of work piece（w） t 8
table diameter mm 1800
table speed step step 16(ⅱgear stepless , stepless)
revolving speed range of table rmin 2.5~125（2.5~125）
max. Table torque k n •m 32（25）
max. Cutting force of vertical tool head k n 25（18）
horizontal travel of vertical tool head mm －20~1115
vertical travel of vertical tool head mm 800
feed range of vertical tool head mmmin 0.1~2000
rapid moving speed of vertical tool head mmmin 10000
travel of cross rail mm 890
cross section area of tool bar mm 32x40
main motor power kw ac：37（dc：55）
electric tool post mm 320x320
weight of machine(approx) t 17
cnc system siemens.
