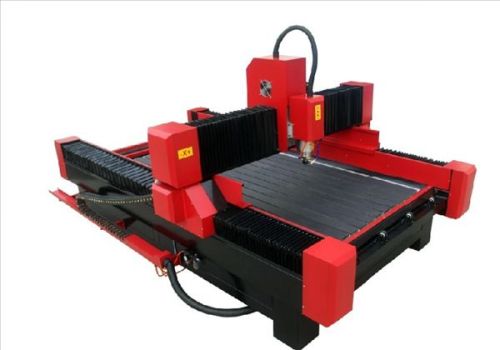

CNC Stone Carving Tools

We are offering cnc stone carving tools for marble, granite sandstone.
Features:
1.three axises all adopt hivin linear square guide rail so that it runs smoothly and has high precision.
2.rack and pinions are used to ensure its high speed and ball screw can ensure its high precision.
3.built-in water tank and automatic double direction cutters cooling system protect the tool effectively while processing all kinds of stone .
4.with constant power motor of main axis ,it has powerful cutting capacity and high efficiency.
5.adopt advanced cnc system--dsp handle control system with usb interface,can work without connecting with computer,easy to control.
Parameters and specifications:
model
jk-9015
x,y,z working area
900*1500*250mm
machine size
1.8*2.5*1.7m
spindle power
4.5kw
spindle speed
24000rm
max. Air-line speed
20mmin
max. Working speed
15mmin
repeat position precision
0.025mm
working voltage
ac220v5060hz,ac380v5060hz
collet
er25,3.175mm-14mm
xyz guide rail
hivin linear square rail imported from taiwan
xy transmission
high speed rack and pinions
z transmission
high precision germany ball screw
spindle cooling
water cooling
driver
stepper driver
motor
stepper motor
control system
dsp
lubrication
yes
command language
g-code,u00*mmg*plt
software
artcamtype3mastercam
machine main parts
