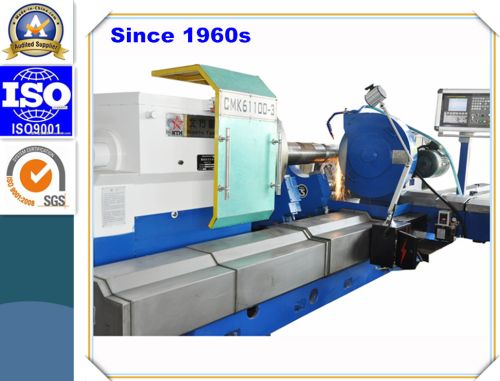

CNC Turning Grinding Machine

We offer cnc turning and grinding machine. 1. Company introduction
qingdao north torch machine co.,ltd was established in the 60s of last century. It originally belonged to liuting airport military enterprise of north china sea fleet aviation (aviation machinery plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc.
2. Technical parameters of ckm61100-13
2.1.0 max. Swing over the skate-board : φ700mm
2.1.1 max. Swing diameter of the work-piece: φ1000mm
2.1.2 max. Work-piece length: 13000mm
2.1.3 max. Weight of work-piece: 20000kg
2.1.4 face plate diameter: φ1000mm
2.1.5 max. Torque of face plate: 40kn•m
2.1.6 cutting force of tool rest: 40kn
2.1.7 center angle: 60°
2.1.8 center height: 600mm
2.1.9 machine weight : 35000kg
2.1.10 machine dimension: 18000(l)×2500(w)×1500(h)mm
2.2.1 grade. Of spindle rotating speed grade 2.
Electricity step-less variable speed
2.2.2 r.p.m of spindle 2～80rmin
2.3.1 number of feeds step-less
2.3.2 longitudinal feed of tool rest 0～3000mmmin
2.3.3 horizontal feed of tool rest 0～3000mmmin
2.3.4 longitudinal rapid feed rate of tool rest 3000mmmin
2.3.5 horizontal rapid feed rate 3000mmmin
for more details, please feel free to contact me. Thanks.
