Salient features

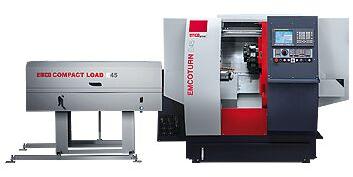

| Model | - | EMCOTURN E45 | ||||
| Work Area | ||||||
| Swing over bed | mm | 430 (530 | ||||
| Swing over cross slide | mm | 300 | ||||
| Distance (spindle nose - centre) | mm | 670 | ||||
| Maximum turning diameter | mm | 220 (380) | ||||
| Maximum part length | mm | 510 | ||||
| Maximum bar stock diameter | mm | 45 (51) | ||||
| Travel | ||||||
| Travel in X axis | mm | 160 (240) | ||||
| Travel in Y axis | mm | 510 | ||||
| Travel in Z axis | mm | +40/-30 | ||||
| Main Spindle | ||||||
| Speed Range | Rpm | 0-6300 (5000) | ||||
| Drive Performance | Kw | 13 | ||||
| Spindle Torque | Nm | 78 | ||||
| Spindle nose DIN 55026 | - | A2-5 | ||||
| Spindle Bearing (inner diameter at front) | mm | 80 | ||||
| Spindle bore | mm | 53 | ||||
| C-Axis | ||||||
| Resolution | - | 0.001° | ||||
| Rapid motion speed | Rpm | 1000 | ||||
| Spindle indexing (disc brake) | - | 0.01° | ||||
| Tool turret | ||||||
| No. of tool positions | No. | 6 | ||||
| Tool holding shaft in accordance with VDI (DIN 69880) | - | 30 | ||||
| Tool cross-section for square tools | mm | 20x20 | ||||
| Shank diameter for boring bars | mm | 32 | ||||
| Turret/Tool indexing time | Sec | 0.14 | ||||
| Driven tools DIN 5480 | ||||||
| No. of driven stations | No. | 6 | ||||
| Drive performance | Kw | 4 | ||||
| Torque | Nm | 16 | ||||
| Speed range | Rpm | 0-5000 | ||||
| Feed drives | ||||||
| Rapid motion speed X/Y/Z | M/Min | 24/10/30 | ||||
| Feed force in X/Y/Z axis | N | 4000/4000/6000 | ||||
| Position variation Ps in accordance with VDI 3441 in X/Y/Z | µm | 3/3/3 | ||||
| Automatic tailstock | ||||||
| Tailstock travel | mm | 510 | ||||
| Maximum thrust | N | 6000 | ||||
| Max. Travel speed | M/Min | 20 | ||||
| Quill bore taper | - | MT 4 | ||||
| Coolant system | ||||||
| Tank volume | Ltrs | 250 | ||||
| Pump Performance | Kw | 0.57 | ||||
| Dimensions and weight | ||||||
| Height of centres above floor | mm | 1100 | ||||
| Machine height | mm | 1958 | ||||
| Required space for machine (LXD) | mm | 2575x1790 | ||||
| Total weight | Kg | 3300 | ||||
| Compact Load | ||||||
| Bar length | mm | 150-1100 | ||||
| Bar diameter | mm | 8-65 | ||||
| Material storage | mm | Approx. 550 | ||||
| Length | mm | 1700 | ||||
| Width | mm | 1100 | ||||
| Weight | Kg | Approx. 500 | ||||
| Height (spindle centre) | mm | 1097 | ||||
