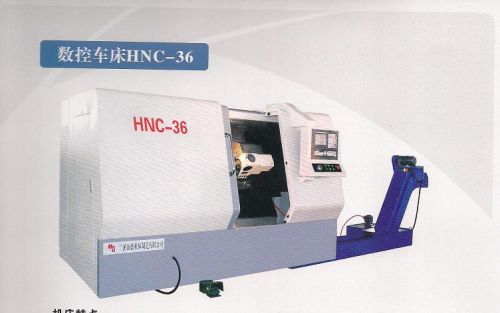

CNC Turning Machine Hnc-36

We are offering cnc turning machine hnc-36.
machine characteristic
1.spindle unit has no thread pretensioning structure,high spindle precision,high dynamic balance precision,spindle long time using.
2.x,z direct using screw pretensioning structure,good resist thermal deformation
3.x,z direct guide using high grade cast iron,superaudio quenching,hard above hrc52
4.body using frame-box type structure,60o slant,high steel
selection configuration
1.control system:siemens,fanuc,mitsubishi,knd,gsk
2.tool-post:servo tool-post,hydraulic tool-post
3.hydrautic tailstock
main technical parameters
specification unit axis parameters disc parameters
max.swing over bed mm 360 360
max.swing over carriage mm 190 190
max.processing workpiece diameter mm 360 360
max.processing workpiece length mm 500 390
spindle speed r.p.m 50-2500 50-2500
spindle nose type a2-6 a2-6
spindle throughbore diameter mm 58 58
z-axis travel mm 690 390
x-axis travel mm 290 290
max.fast movement speed of z direct m/min 12 12
max.fast movement speed of x direct m/min 10 10
main motor power kw 11 7.5
z direct servo motor power kw 2.2 2.6
x direct servo motor power kw 2.2 2.6
tool-post station number number 8/10 8/10
tool hand size mm 口25 口25
round tool hand size mm ф18h7
max.distance of tool rotate time 0.9s 0.9s
range of chuck clamping mm ф13-ф210 ф13-ф210
main precision index
spindle circle beat≤0.003 position precision±0.01 repeat position
precison 0.005
hydraulic motor power kw 1.5 1.5
cooling pump power kw 0.37 0.37
tailstock sleeve diameter mm 85
tailstock sleeve travel mm 80
tailstock sleeve bore taper mt4
overall dimensions(lxwxh) mm 4000x1700x2000 3650x1700x2000
machine weight kg 3200 3200
