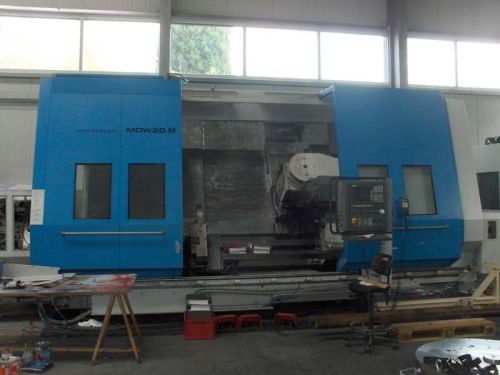

CNC Turning Milling Boring Centre MAX MUELLER MDW 20 M X 3000

Manufacturer max mueller
type mdw 20 m x 3000 built put into operation 200001-2002
control sinumerik 840 c
working area:
swing diameter over bed 850 mm
swing diameter over longitudinal slide 690 mm
distance between centers 3.050 mm
turning length 2.960 mm
main spindle size 15, din 55026
diam. In front bearing 200 mm
max. Speed 1.800 min-1
gear steps 4 (7-250, 14-490, 28-1.000, 56-1.800 min-1)
power on 10060 % ed 6071 kw
torque 1. Gear step 10060 % 6.3707.500 nm
c-axis max. Speed 16 min-1
turning-, milling-, boring unit:
tool taper capto c6 mm prism for boring bars
speed range 56 - 3.000 min-1
power on 10040 %ed 2030 kw
max. Torque 300 nm
travel y axis 250 mm (+125-125 mm)
swivelling angle b axis (milling spindle) 270 each indexing position
tailstock:
quill diam. 160 mm
quill stroke 160 mm
max. Workpiece weight 4.000 kg (chuck + steady + tailstock)
tailstock = nc moveable
tool changer:
tool taper capto c 6, mm prism for boring bars
number of tool places 180
accessories: cnc lathe for turning-, milling- and boring, turning-, milling-, boring unit with capto 6 tapers for milling operations and max mueller prism taper for boring bars with 800 mm length, steady self centering diam. 75 -408 mm, coolant equipment without tank and
filtering unit however with pump display, coolant through milling spindle, 2 piece chip conveyor, chip breaking unit, power chuck diam. 400 mm, ca. 50 piece diverse tool tapers.
