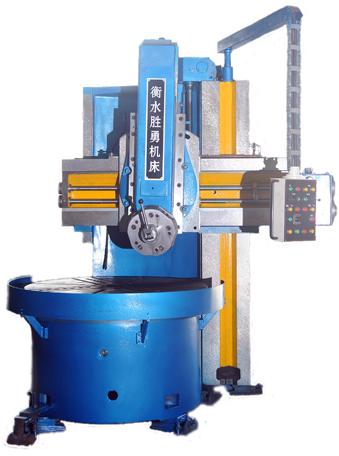

CNC Turret Lathe, Packaging Type : blue

Hengshui shengyong heavy-duty machine tool manufacturing co.,ltd specializes in the manufactures and sells of metalworking machines: vertical turret lathe,cnc lathe machine,single column vertical lathe , double column vertical lathe machine ,heavy duty horizontal lathe machine, gantry milling machine(plano miller), gantry planer milling machine, roll turning lathe etc.
If interested, please feel free to contact us.best regards, abby shang
no unit c5112a
1 table diameter mm 1000
2 max.turning diameter mm 1250
3 max.height of workpiece mm 1000
4 max.weight of workpiece t 3.2
5 speed change of table rmin 6.3-200
6 step 16
7 feed rates minmin 0.8-86
8 step 12 12
9 horizontal travel of tool post mm 700
vertical travel oftool post mm 650
10 horizontal travel of side cutter bar mm 600
vertical travel of side cutter bar mm 800
11 crossrail travel mm 500
12 max. Section scale of tool bar mm 30×40
13 power of main motor kw 22
revolutions rmin 1470
14 power of feed motor kw 1.31.7
revolutions rmin 9401440
15 machine weight t 9.5
16 overall dimensions(l×w×h) mm 2460×2380×3000
