CNC Vertical Borer Lathe Machine

CNC vertical borer lathe machine is suitable for internal and external turningtaping, facing, slotting, threading, contour surface turning (CNC machine) etc.
Feature of CNC vertical borer lathe machine
1 The spindle drive adopts servo motors through 2 steps speed change unit to make work table realize step-less speed regulation.
2  Work table spindle adopts short spindle & constant flow hydrostatic guide-way to keep high centering accuracy, high rotating accuracy, big loading capacity & small deformation.
Technical specification of CNC vertical borer lathe machine C5263
1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 315036504150 mm
3 Maximum Weight of workpiece 5080100 t
4 Table diameter 45005750 mm
5 Speed range of table 0.5-50rmin
6 Maximum torque 1 60KNmin
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
11 Overall dimensions(L×W×H) 12230×6800×6800 mm
12230×6800×7300 mm
12230×6800×7800 mm

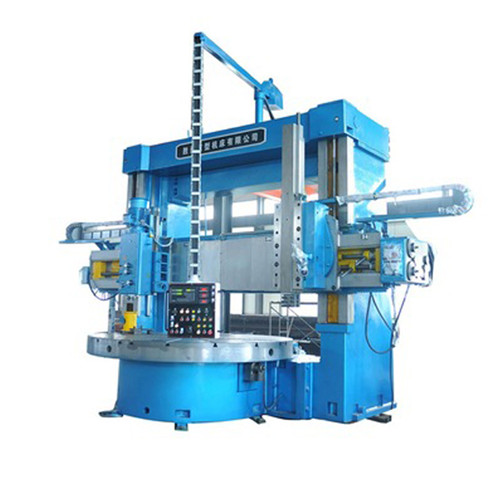

Photo of CNC Vertical Borer lathe machine
