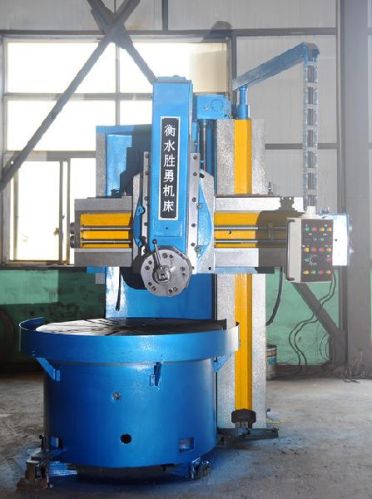

CNC Vertical Lathe Custom Model C5118

The cnc vertical lathe model is suitable for processing the disc type work pieces, and is widely used in ships, metallurgy, electric power, petroleum, engineering machinery (bulldozers, excavators, etc.). For cutting, thread, chamfering,  reaming process ,the cnc vertical lathe model also has excellent performance.
We can provide vertical lathe custom seivice according to user need. The vertical lathe custom can be divided into manual type and CNC type, using finite element calculation and optimization design method, perform the latest national current precision standard to realize high torque cutting tool.
Technical specification of VTL CNC Machines for Sale C5118
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 rmin
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mmmin
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 rmin
14 Power of Feed motor 1.31.7 kw
Revolutions 9401440 rmin
15 Machine weight 17.5 t
