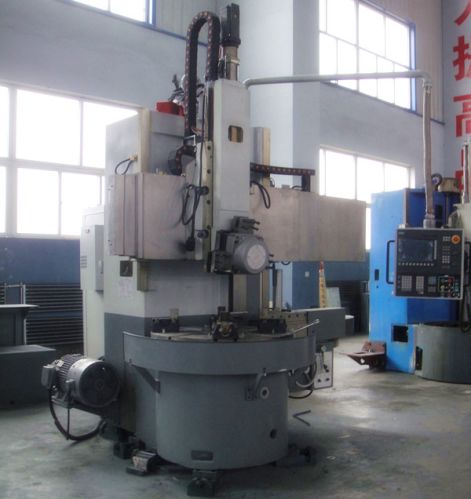

CNC Vertical Lathe Machine, Brand Name : Dalian Feida

We are offering cnc vertical lathe machine.
Technical specifications of ck5112
max. Turning diameter (mm) 1250
max. Working height of workpiece (mm) 1000
max. Weight of workpiece (t) 4
table diameter (mm) 1000
speed-step of table four gears stepless
speed range of table (r/min) 3.2~200
max. Torque of table (kn.m) 10
power of main motor (kw) 22
max. Cutting resistance of tool post (kn) 12
travel of ram of railhead (mm) 650
rapid traveling speed of railhead (x,z axis) (mm/min) 2000
travel of railhead horizontal (mm) -20~700
feeding steps of railhead (x,z axis) stepless
feed range of railhead (x,z axis) (mm/min) 0.1~2000
sectional size of tool bar (mm) 32×32
torque of feeding servo motor (ac) (n.m) 11
travel of crossbeam (mm) 700
traveling speed of crossbeam (mm/min) 440
power of motor for going up and down of crossbeam (kw) 2.2
positional accuracy (x,z axis) (mm) 0.03/1000
repeatable positional accuracy (x,z axis) (mm) 0.015/1000
power supply and voltage 380v±10%
controller siemens802d or optional.
