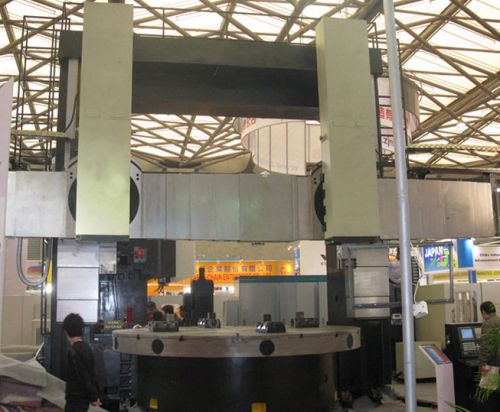

CNC Vertical Lathe Machines

We are offering cnc vertical lathe machines.
Technical specifications of cnc double column vertical lathe ck5225
max. Turning diameter of railhead (mm) 2500
table diameter (mm) 2250
max. Working height of workpiece (mm) 2000
max. Weight of workpiece (t) 10
sectional size of tool bar (mm) 40×50
max. Cutting resistance of tool post (kn) 35(right tool post)
28(left tool post)
max. Torque of table (kn.m) 63
speed range and steps of table (r/min) 2.5~80 four gears stepless
feed range and steps of tool post (mm/min) 0.1-2000 stepless
rapid traveling speed of tool post (mm/min) 3000
travel of tool post horizontal (mm) -20~1500
travel of tool post vertical (mm) 1000
table guide hydrostatic
max. Travel of crossbeam (mm) 1650
speed of going up and down of crossbeam (mm/min) 350
controller siemens 802dsl
position accuracy test and evaluate accuracy according to gb/t17421.2-2000
positional accuracy (mm) x z 0.03/1000
repeatable positional accuracy (mm) x z 0.015/1000
reverse positional accuracy (mm) x z 0.010/1000
working condition
temperature range (°) 0~40
ambient thumidity ≤85%
power supply and voltage indicate by customer
power of main motor (kw) dc55
