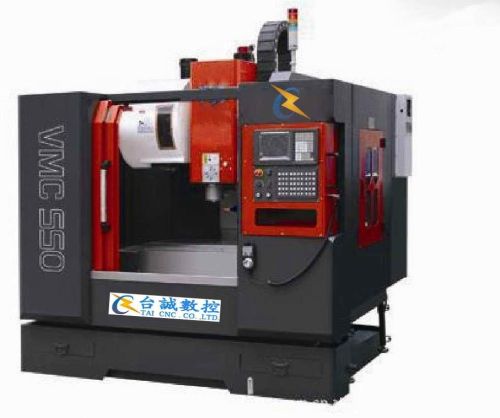

CNC Vertical Machining Center

We are offering cnc vertical machining center.
Vmc-550
the machine bed,slide base,worktable,column,spindle box and the other key spare parts used high rigidity iron castings,ensure the structure of the machine a excellent strength,anti-torsion and shock absorption performance. All of the iron casting were resin sand casting and being through the aging treatment to eliminate the internal stress. This reduced the stress affects to the machining accuracy,
the axial feeding of x/y/z axis used high precision and strength ball screw, to achieve a high feed speed and positioning accuracy.
the linear guide slide and ball screw of x/y/z axis use a closed protection shield,in order to keep the ball screw and guide slide clean,to ensure the transmission and movement accuracy of the machine.
the outer protection apply a complete closed design, safe and reliable.
the operation system is designed ergonomically,easy to operate.
automatic centralized lubrication system make the machine working stable.
the program and control system use a world famous brand cnc system, powerful functions and easy to operate.parameters
　　　　　
worktable size 　　　　 　　　　　 800*320 mm
t-slot quantity-width-space 3-14-100 mm
max load of the worktable 300 kg
travel of x-axis 550 mm
travel of y-axis 340 mm
travel of z-axis 460 mm
spindle head to worktable 100-470 mm
spindle center to column 380 mm
spindle taper hole 　　　 bt40
max running speed of spindle 8000 rpm
power of spindle motor 5.5 kw
rapid feeding of x/y axis 12,000 mm/min
rapid feeding of z axis 10,000 mm/min
cutting feeding speed 1-6000 mm/min
ball screw (diameter and space) 32/10
width of linear slide xy 35 z 45 mm
positioning accuracy 0.016 mm
repeat positioning accuracy 0.008 mm
cutting tools holder 10 -- 12 -- 16
cutting tools change time (armless type) 8 seconds
air pressure 0.6 mpa
weight total 2500 kg
dimensions 2200*1600*2300 mm
