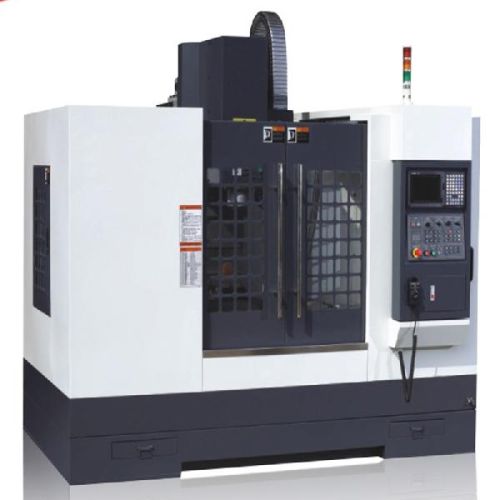

CNC Vertical Milling Machine, Brand Name : darway

Turret milling machine xk(h)7132 cnc vertical milling machine for sale
xk7132 cnc milling machine feature:
1. High reliability: the body casting technology is advanced, the aging process, casting label meet national standards.
2. The upright post and guide rail are of high precision and high precision.
3. Two type change tool available, manual, pneumatic.
4. Cnc system can be used to step motor or servo motor, to provide customers with a good price.
5. Can be customized according to customer requirements of the corresponding products
cnc machining machines
xk(h)7124
xk(h)7132
xk(h)7136
capacity
table size
800x240mm
800x320mm
1250x360mm
max. Table load
200kg
300kg
400kg
t slot numberwidthspacing
31475
314110
31880
spindle speed
60-6000r p m
60-8000r p m
40006000r p m
spindle nose to table surface
60-460
120-520
120-580
spindle center to column surface
200mm
360mm
460mm
spindle taper
bt30
bt40
bt40
main motor power
3.7kw (servo)
3.7kw (servo)
3.7kw(servo)
box way
x axis travel
400mm
500mm
900mm
y axis travel
240mm
320mm
360mm
z axis travel
400mm
400mm
460mm
xyz axis rapid feed
6mmin
151510mmin
554mmin
accuracy
positioning accuracy
±0.01
±0.01
±0.01
xyz axis repeat ability
±0.005mm
±0.005mm
±0.005mm
net weight
1800 kg
2650kg
2500 kg
overall dimension
1870x1520x2000
1900x1800x2100
2220x1850x2250
