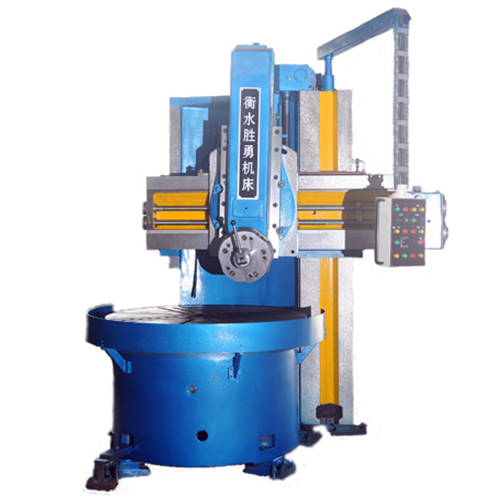

CNC Vertical Turret Lathes Machine CK5112

Product name :CNC vertical turret lathes machine CK5112
Feature of CNC vertical turret lathes machine CK5112
Vertical lathe machine VTL machines have the conventional type and CNC type. The conventional type is represented as [C51-" and NC type represented as [CK51-".
The worktable spindle is centered by high precision double-row short cylindrical roller bearing of which the radial clearance is adjustable,the worktable is equipped with unloading hydrostatic guideway. It is helpful to achieve a high rotary accuracy,large loading and small heat deformation.
Horizontal and vertical rapid feed could be a continuously variable speeds through AC servo driving.
CNC machine adopt SIEMENS or FANUC system. It can be provided on user`s requirement. CNC Vertical turret lathe machine can be carried out turning inner&outer cylinder surface,cone surface, grooving, drilling,tapping and reaming etc process machining.
Vertical turret lathe machines VTL machine model:
CK5112CK5116CK5118CK5120CK5123CK5125CK5126
CK5225CK5232CK5240CK5250CK5263 CK5235
Technical specification of CNC vertical turret lathes machine CK5112
1 Table diameter 1000 mm
2 Maximum turning diameter 1250 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 3.2 t
5 Speed change of table 6.3-200 rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool p
