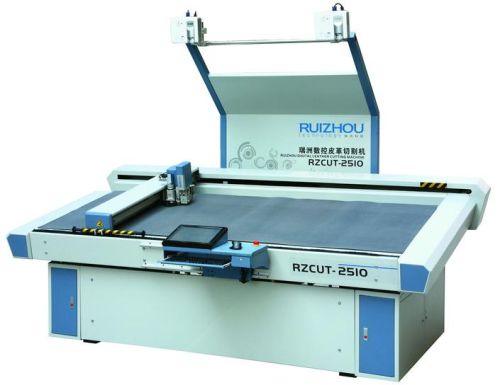

CNC Vibrating Blade, Leather Cutting Machine

We are offering cnc vibrating blade, leather cutting machine
product dscription
applied in a wide range of industries,like footwear,suitcases&bags,apparel,cartons&boxes,plane-chair,autos.reliable quality,accurate performace,powerful function.
key functions
1.dual projection system with rapid calibration
2.automatical and interactive nesting for material
3.multi-function tool head can do cutting, marking and punching alternatively
4.fix material with powerful vacuum suction
5.different cutting blades available for a wide range of material
6.cutting process parameterization
7.support for parts pick-up
8.reporting cutting process
what are the benefits
1.time saving:manual-cutting will be completely replaced by our machine,since all the process are digitally organized,one hour of work with our cutting system equals about 5 hours of manual cutting.
2.material saving:according to nesting report chart of material.you can conduct nesting with our system and experiment with different arrangments until you the tightest nesting solution.
3.accuracy: improved accuracy begins with the ability to create perfect patterns. Patterns are then cut with a precision of half a millimeter.
4.error elimilation: consistently accurate cut pieces will mean no time wasted correcting mistakes.
5.inventory reduction: our cutting system allows you to minimize cut inventory levels. Single or low ply cutters can quickly cut just what is needed for that day's production. This translates into a quick response time and minimum cut inventory.
6.employee satisfaction: pattern-makers appreciate the ease of input, design, and pattern modification. Cutters will enjoy a cleaner, safer work environment.
technical parameter
model
rzcut-1007
rzcut-1410
rzcut-1510
rzcut-2510
cutting area
1000*700mm
1400*1000mm
1500*1000mm
2500*1000mm
cutting material
natural leather, artificial leather, synthetic materials, cardboard
working performance
cutting speed: 1-1000mm/s material clearance: ≥1mm
cutting thickness: 0.5-6mm acceleration: 0.05m/s2
transmission interface
standard serial interface, parallel port
command system
language of hp-gl and gp-gl
power consumption
host
ac220v±10%,50hz
vacuum air-pump
5.5kw,ac380v±10%,50hz
9kw,ac380v±10%,50hz
air compressor
1.5kw,ac220v±10%,50hz
hold-down method
vacuum suction
control system
ruizhou cnc leather cutting system
projector
double
single
tool head
the cutting module, the dual punching module and pen module, controlled by servo motor
cutting tool
blade: vibration blade;
punch tool: diameter 1-5 mm;
pen: oil pen, ball pen
vacuum plate
vacuum based on cells
