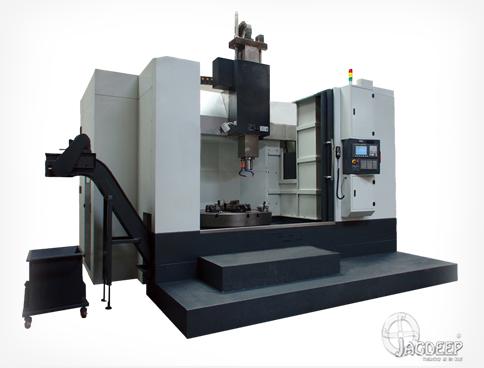

CNC Vtl Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Standard Features Table with manual 4-jaws Chuck as Specification Automatic Lubrication System Work Light Coolant System with Motor, Tank, Piping etc Complete Splash Guard Telescopic Covers & Bellows CNC System Variable Frequency Drive (VFD) for Table All Casting's Machining on CNC Machines Optional Accessories Moving Cross Rail AC for Control Cabinet Chip Conveyor Hydraulic Chuck Extend Travel of Ram Grinding Attachment Angular Milling Attachment Live Spindle with C-Axis ATC Extra Day Light Collant Through Spindle Jig & Fixtures Linear Scales for X/Z axis

View More Details

Send Enquiry

Company Information

Broadway Foundry

GT Road, Batala, Punjab

View Number

Member Since 19 Years
Nature of Business Retailer
Year of Establishment 1967

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Descriptions	JVTC-1	JVTC-1.25	JVTC-1.6	JVTC-2	JVTC-2.5	JVTC-3
CAPACITY
Table Diameter (Manual Chuck)	1000 mm	1250 mm	1500 mm	2000 mm	2500 mm	3000 mm
Max. Turning Diameter	1200 mm	1600 mm	1800 mm	2200 mm	2700 mm	3200 mm
Max. Turning Height	600 mm	1000 mm	1200 mm	1200 mm	1200 mm	1200 mm
Max. Work piece Weight	3500 kgs	4500 kgs	6000 kgs	8000 kgs	12000 kgs	15000 kgs
