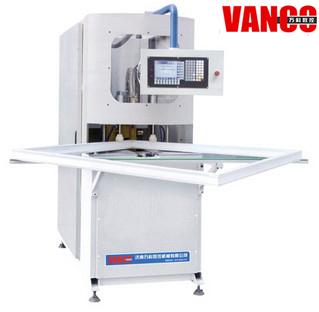

CNC Welding Corner Cleaning Machine

We offer cnc welding corner cleaning machine for pvc window and door cnc sqja-cnc-120
function:
used for profile welding seam cleaning.
Features:
1. Two-axes computer control system.
2. Main components such as servo motor drive system, computer control system, solenoid valve, air source disposer are all imported ensures reliable performance and long using life.
3. Horizontal inward clamping system ensures the precision of the corner cleaning.
4. It can clean outside vertical surface, upbottom welding seam and seal rubber groove part, process the lock slot of lift sash for american profile once time (optional).
5. It can store many programs for various profile processing.
6. Circular interpolation and line interpolation function to ensure the good cleaning result.
7. Customize different cutters according to different profile section for meeting different clean requirement.
Technical parameter:
air pressure: 0.5~0.8mpa
air consumption: 40lmin
power supply: 380v50hz
input power: 1.4kw
main cutter revolving speed: 2880rmin
profile width: 20mm~120mm
profile height: 30mm~120mm
dimension: 1570mm*2670mm*2070mm (l*w*h)
weight: 500kg.
